Removing Rear Side Window

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

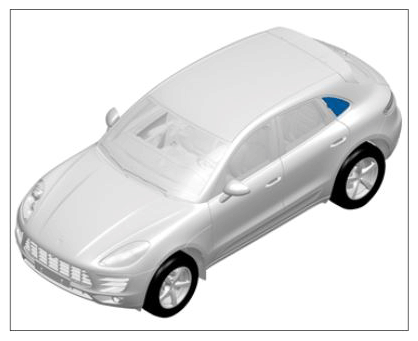

G11981357

Installation position of side window

  1. Release connector -1-  for antenna amplifier and disconnect plug connection.

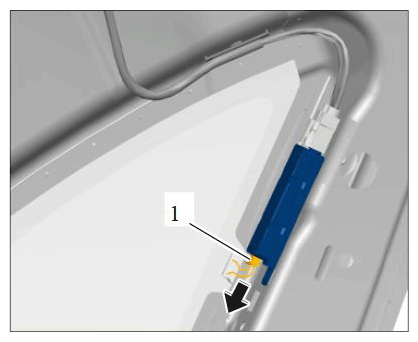

    G11981358

    Plug connection

  2. Unscrew and remove fastening nuts -1 -  for side window.

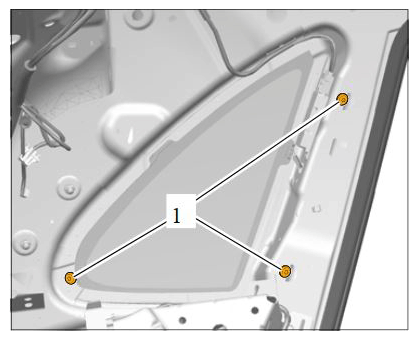

    G11981359

    Side window mounting

  3. Remove side window.
