Removing Switch For Rear Power Windows

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully disengage insulating mat -1-  from the fastening hooks -arrows-  and remove it.

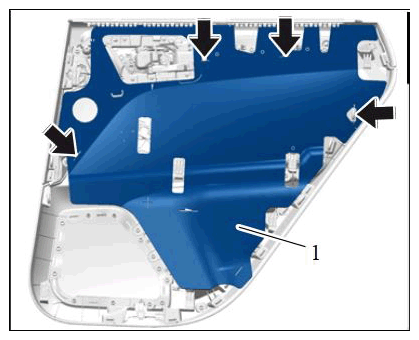

    G11981345

    Removing insulating mat

  2. Disconnect electric plug connection -1-  at the light for ambient lighting.
  3. Unscrew fastening screws -2-  on the armrest and remove armrest.

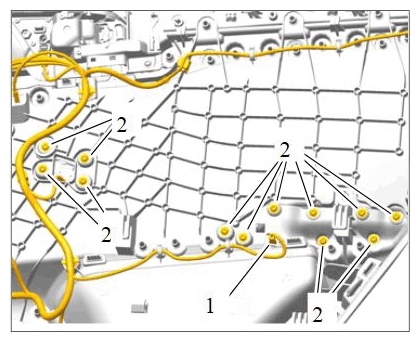

    G11981346

    Removing armrest

  4. Press the catches -a-  and push the rear power windows switch -1-  up out of the armrest.

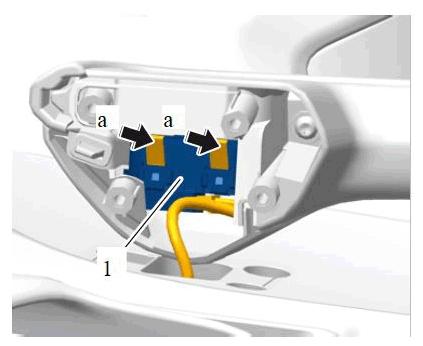

    G11981347

    Removing switch for rear power windows

  5. Disconnect electric plug connection -1-  from the rear power windows switch -2-  .

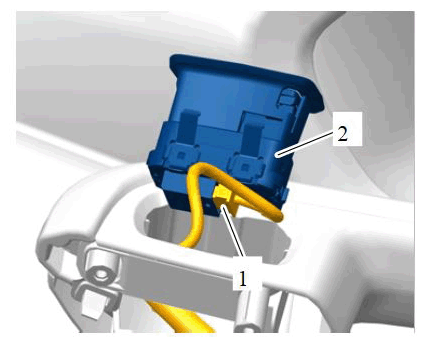

    G11981348

    Disconnecting electric plug connection
