Removing Switch For Front Power Windows

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

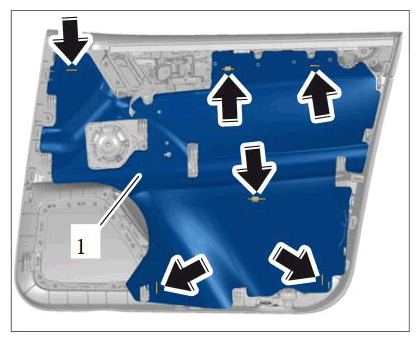

  1. Carefully disengage insulating mat -1-  from the fastening hooks -arrows-  and remove it.
    G11981340

    Removing insulating mat

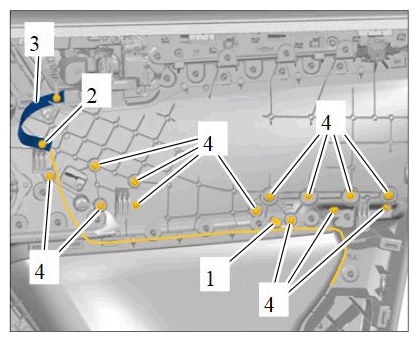

  2. Disconnect electric plug connection -1-  at the light for ambient lighting.
  3. Unscrew fastening screw -2-  on the rebound strap -3-  .
  4. Unscrew fastening screws -4-  on the armrest.
    G11981341

    Removing armrest

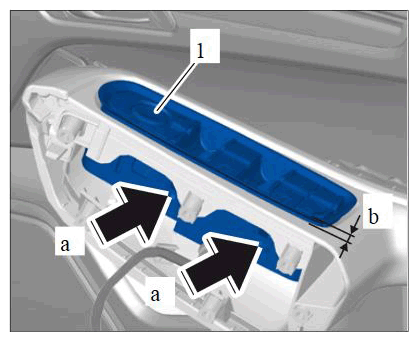

  5. Press the catches -a-  and press the front power windows switch -1-  out of the armrest by dimension -b-  .

    b  - 5 mm

    G11981342

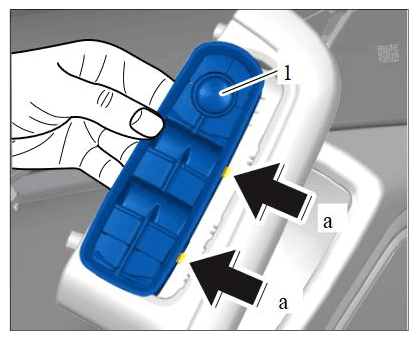

  6. Reach in behind the front power windows switch -1-  , press the inner catches -a-  and press the front power windows switch out of the armrest.
    G11981343

    Removing switch for front power windows

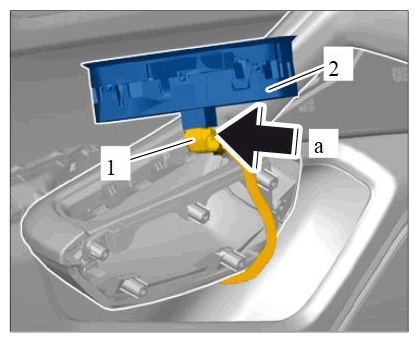

  7. Release electric plug connection -1-  (-a-  ) and pull it off the front power windows switch -2-  .
    G11981344

    Disconnecting electric plug connection
