Removing Power Window Motor

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

  1. Switch off ignition and pull remote control out of ignition lock.
  2. Pull out locking mechanism -a-  , press release button -b-  and pull off electric plug connection -1-  .
  3. Unscrew fastening screws -2-  and remove front power window motor -3-  .

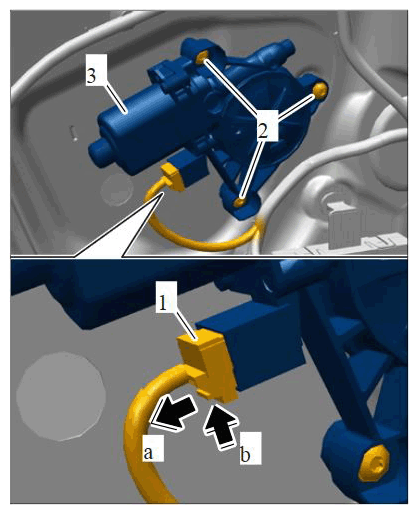

    G11981339

    Removing front power window motor
