Removing Front Window Channel Seal

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The molding cannot be removed without damaging it irreparably and must always be replaced.

  1. Open the front door window fully.

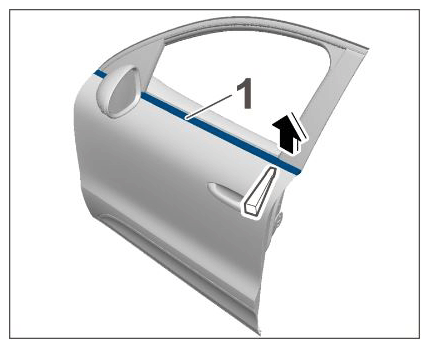

  2. Carefully loosen window channel seal -1-  from the sheetmetal flange using a plastic wedge.
    G11981332

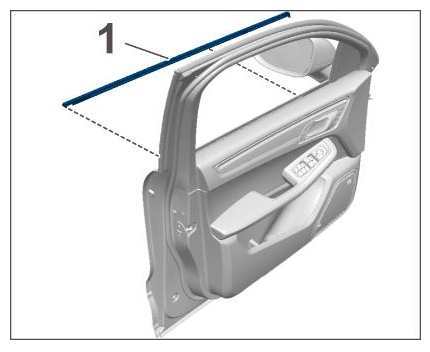

  3. Pull window channel seal -1-  up off the sheetmetal flange, starting at the rear -arrow-  .
  4. Remove window channel seal -1-  .
    G11981333

    Removing window channel seal
