Removing Front Window Guide

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .

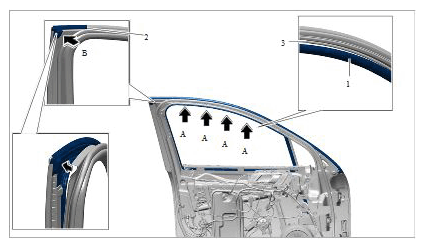

  1. Loosen rubber lip -1 -  of the window guide -2-  in area -arrow A-  on the sheet metal seam -3-  .
  2. Fold over window guide -2-  in area -arrow B-  and pull window guide -2-  off the door.
    G11981328

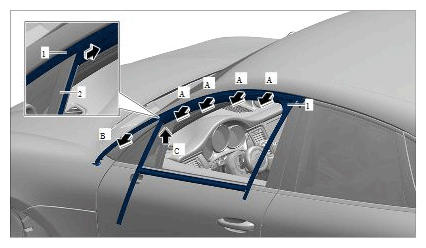

  3. Loosen window guide -1-  in the upper area -arrow A-  from the door.
  4. Pull window guide -1-  to the rear and out of the guide -2-  .
  5. Loosen window guide -1-  in the front area -arrow B-  from the door.
  6. Pull window guide -1-  up completely -arrow C-  and remove it from the guide -2-  .
    G11981329

    Removing window guide
