Removing Front Door Window

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide out rubber seal -1 -  at the cover -2-  .
  2. Guide out wire harness -3-  at the brackets for the cover -2-  .
  3. Unclip cover -2-  on door inner panel, guide out door release cable at the cover -2-  and remove cover -2-  .

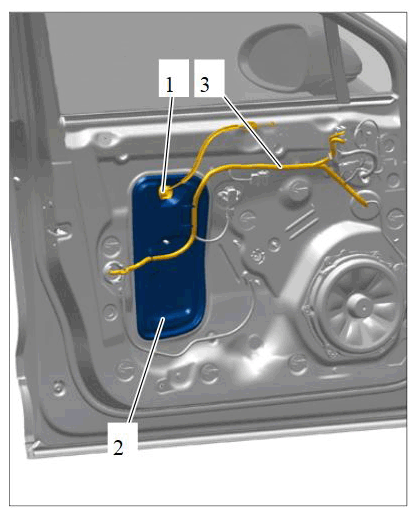

    G11981323

    Cover on door inner panel, front
  4. Slide the window down until the mountings -4-  are accessible through the cut-outs in the door inner panel.
  5. Loosen door window glass -1-  from the relevant mounting points -4-  on the power windows mechanism.
    1. 5.1. Actuate locking mechanism -2-  and remove limit stop -3-  on the power windows mechanism.

      Move door window glass -1-  down until the locking mechanism -5-  is accessible.

      Actuate locking mechanism -5-  using a suitable tool -arrow A-  and carefully raise the door window glass -1-  (-arrow B-  ).

    2. 5.2. Pull door window glass -1-  fully up -arrow B-  out of the mounting points -4-  .

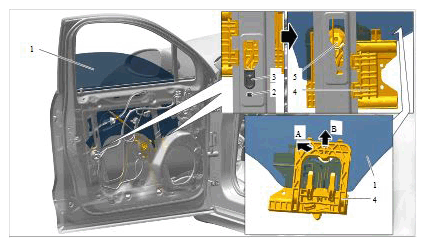

      G11981324

      Releasing door window mounting

  6. Pull door window glass -1-  up slightly, tilt it forward at an angle -arrow A-  and pull it up -arrow B-  out of the window guide.

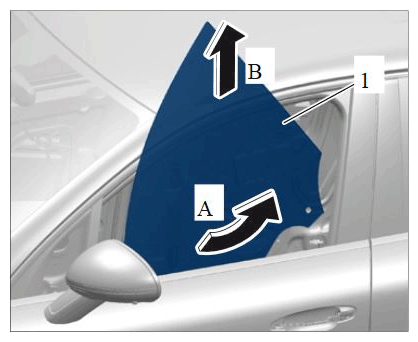

    G11981325

    Removing door window glass
