Tools And Materials
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

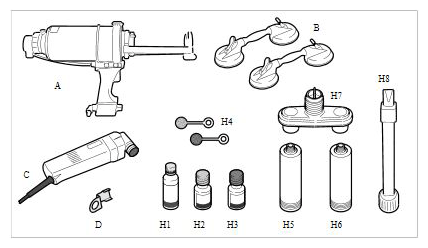

The following tools and materials are required for removing and installing the rear window with 2-component adhesive:
- A - Double cartridge gun VAS 5237; see Workshop Equipment Manual, Chapter 3.5
- B - Suction cups VAG 1344; see Workshop Equipment Manual, Chapter 3.5
- C - Special electric cutter (fine) VAG 1561 A; see Workshop Equipment Manual, Chapter 3.5
- D - Flashing knife, U-type 639.031.130.22; see Parts Catalogue, Main Group 8
- H - 2-component window adhesive 000.043.300.94, contains set components H1-H8; see Parts Catalogue, Main Group 8
- H1 - Cleaning solution
- H2 - Primer
- H3 - Activator
- H4 - Swab
- H5 - Cartridge, component A
- H6 - Cartridge, component B
- H7 - Mixing nozzle
- H8 - Processing nozzle

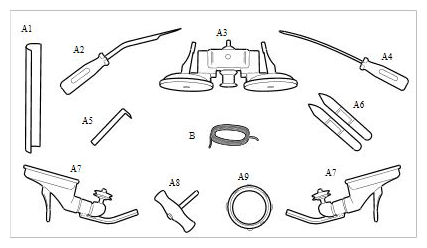

- A - Removal kit for flush bonded windows VAG 1474 B, contains set components A1-A9; see Workshop Equipment Manual, Chapter 3.5
- B - Cutting thread, see Parts Catalogue, Main Group 8
- A1 - Guide rail
- A2 - Cutting tool (wire holder)
- A3 - Spooling device
- A4 - Awl
- A5 - Guide rail
- A6 - Spatula
- A7 - Steering roller with arm bracket
- A8 - Handle
- A9 - Square cutting wire
