Removing Antenna Amplifier

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off ignition and pull remote control out of ignition lock.
  2. Release antenna connector -1-  (-a-  ) and pull it off the antenna amplifier -2-  .
    NOTE: The number of plug connections can vary, depending on equipment.
  3. Pull locking mechanism for antenna connector -3-  out slightly, press it -b-  and pull antenna line off the antenna amplifier.
  4. Unscrew fastening screw -4-  .
  5. Swivel antenna amplifier out and pull it to the right and out of the tailgate.

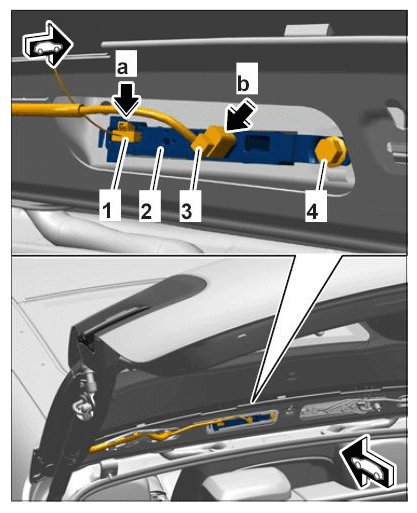

    G11982569

    Removing antenna amplifier
