Removing Trailer Hitch Control Unit
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
- Switch off ignition and pull remote control out of ignition lock.

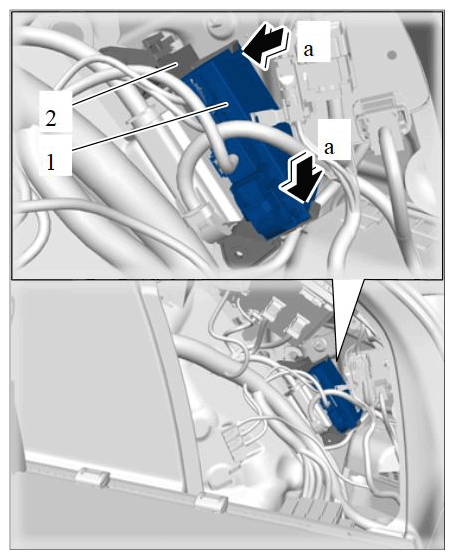

- Disengage retaining clips -a-
and remove trailer hitch control unit -1-
from the holder -2-
.
Loosening trailer hitch control unit from holder
NOTE: Always comply with the regulations for handling ESD-sensitive components!- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .

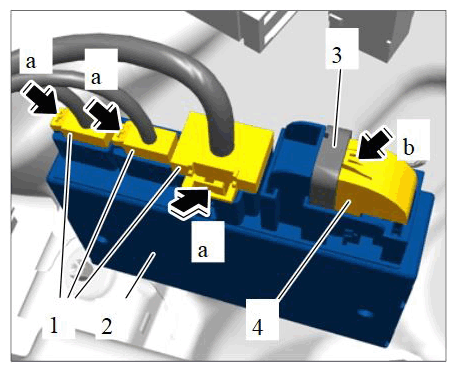

- Disconnect electric plug connections.
