Removing Rear-View Mirror

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Disconnect electric plug connections -1-  .
  2. Guide rubber seal -2-  out of the door inner panel.
  3. Pull off adhesive pad -3-.
  4. Hold rear-view mirror -4-  securely and unscrew screw -5-  .
  5. Remove rear-view mirror -4-  and guide wire harness -6-  out of the door.

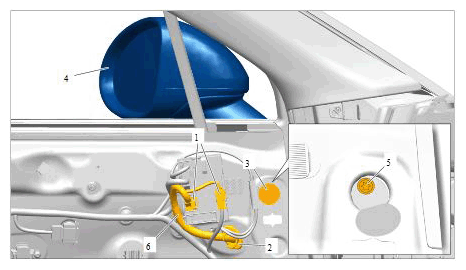

    G11981456

    Removing rear-view mirror
