Installing Roof Rails
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal and installation can be considerably easier with the help of another person.
- Fit roof rails on the roof using the front bolt.
- Position roof rails fully.
- Fit fastening nuts.

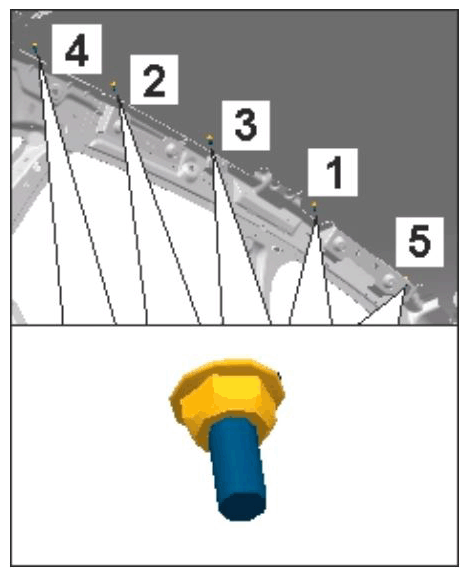

- Tighten fastening nuts in the sequence shown to the specified tightening torque.
Fastening screws for roof rails
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening nut for roof rails | Tightening torque | 10 Nm (7.5 ftlb.) | |||
Fastening screws for roof rails
