Removing Mirror Glass

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .

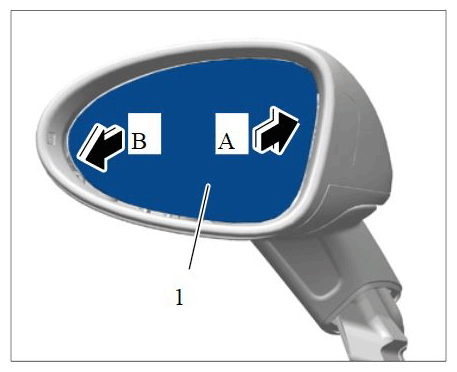

  1. Press mirror glass -1 -  inwards on the inside -A-  and carefully unclip it from the adjustment mechanism on the outside -B-  .
    G11981433

    Unclipping mirror glass

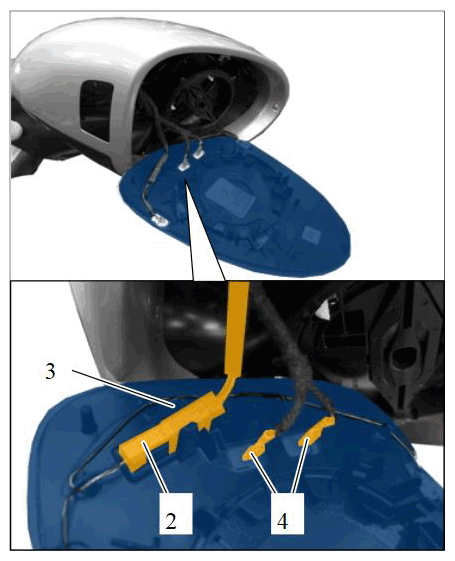

  2. Unclip plug connection -2-  from the bracket -3-.
  3. Release and disconnect plug connection -2-  .
  4. Release and disconnect plug connections -4-  .
    G11981434

    Electric plug connections
