Removing Rear Spoiler

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

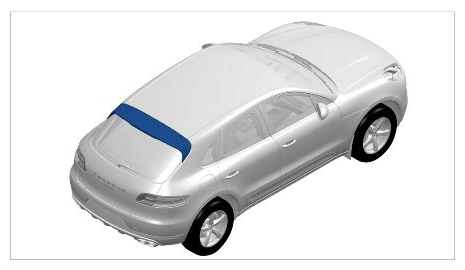

G11981423

Installation position of rear spoiler

  1. Release washer fluid line from spray nozzle using a screwdriver -1-  and remove it.
    G11981424

    Washer fluid line

  2. Release electric plug connection -1-  for antenna cable and disconnect it.

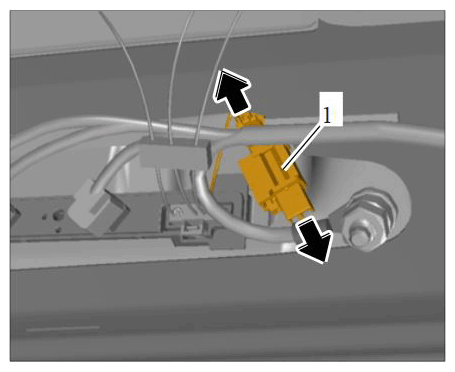

    G11981425

    Plug connection for antenna cable

  3. Remove caps -1-  on rear spoiler.
    1. 3.1. Unscrew and remove fastening nut -2-  .
    2. 3.2. Unscrew and remove fastening screw -3-

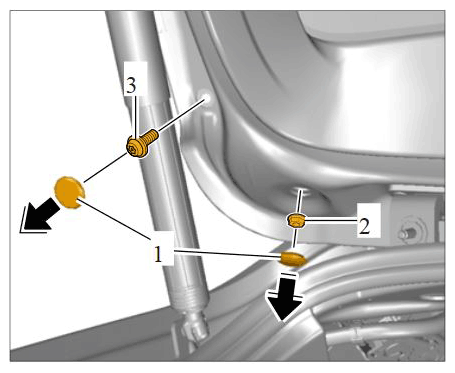

      G11981426

      Loosening rear spoiler

  4. Carefully unclip rear spoiler -1 -  from the bracket by pulling it to the rear -arrow -  .

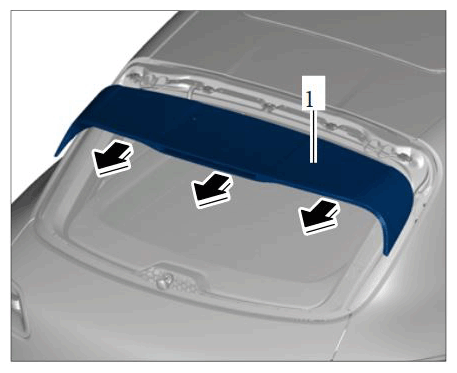

    G11981427

    Removing rear spoiler

  5. Pull out wiring harness and washer fluid line.
  6. Remove rear spoiler.
