Removing Rear Logo

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

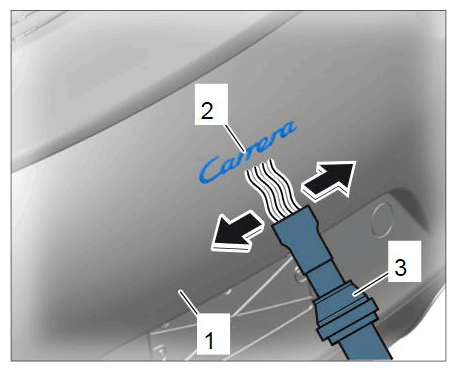

  1. Heat the area -1-  around the logo -2-  using the hot-air blower v.a.g 1416 -3-  .
    G11981415

    Heating area around the logo (shown on the 991)

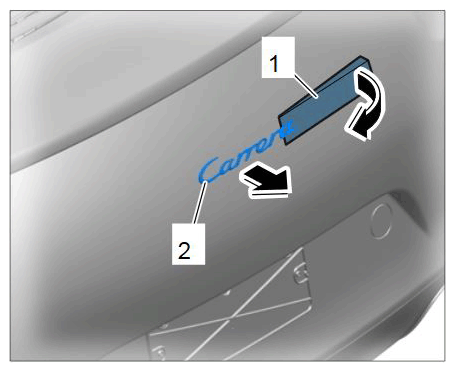

  2. Prise off the logo using a plastic spatula.
    G11981416

    Prising off logo (shown on the 991)

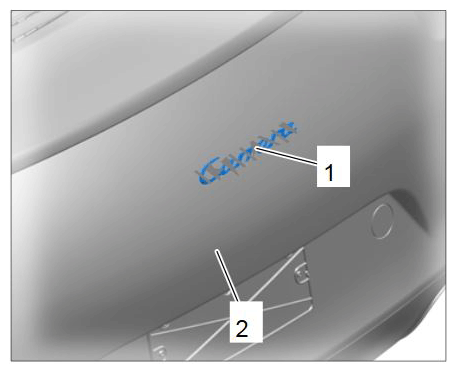

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
    G11981417

    Cleaning logo area (shown on the 991)
