Replacing roof moulding
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Coat new roof moulding -1-
and window guide -2-
with a light coating of rubber lubricant before installation.

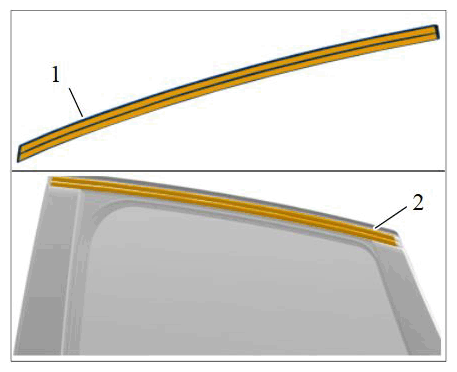

Coating roof moulding and window guide
- Install roof moulding.

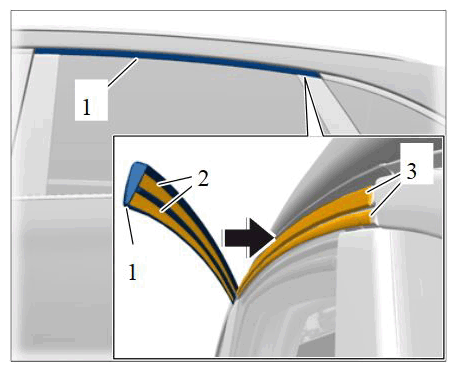

Installing roof moulding
- 2.1. Align roof moulding -1- on the window guide and starting at the front, fit it on the window guide by pressing it on uniformly.
- 2.2. Make sure that the profile strips of the roof moulding -2- engage correctly in the profile of the window guide -3-.
