Removing Roof Moulding

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
NOTE: The moulding cannot be removed without damaging it irreparably and must always be replaced.

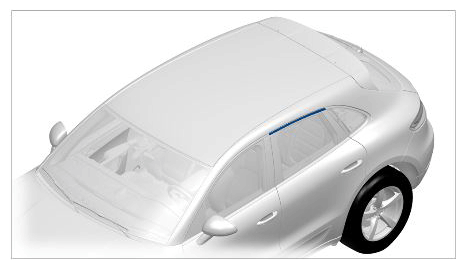

G11981402

Installation position of roof moulding

  1. Open the rear door window fully.
  2. Loosen roof moulding -1-  - starting in the rear area -arrow A-  -from the window guide -2-  using a plastic wedge and pull off roof moulding -1-  .

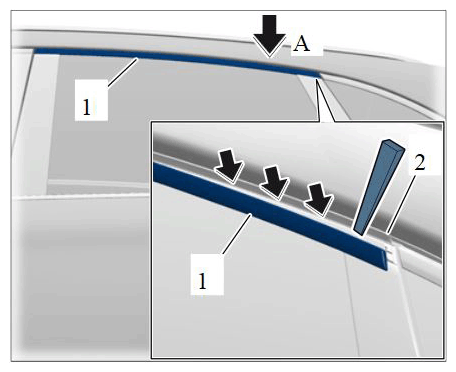

    G11981403

    Removing roof moulding
