Technical Values
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

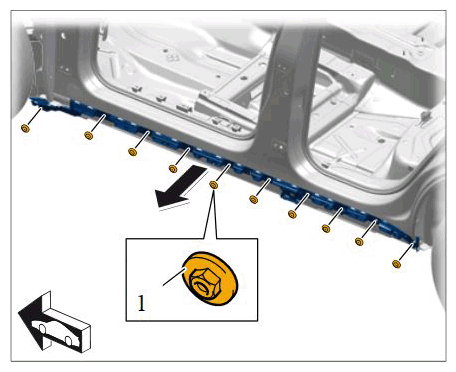

| Fastening nut on door entry guard bracket |
Item 1 |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
Support rail for door entry guard |

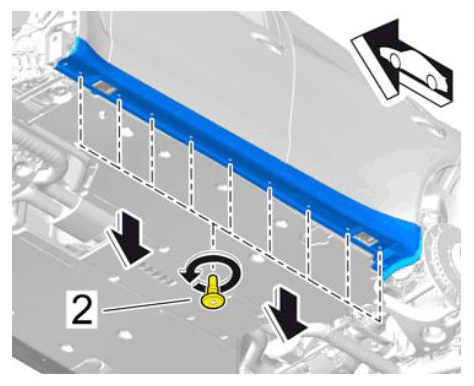

| Fastening screws for door entry guard |
|
Tightening torque |
2.5 Nm (2 ftlb.) |
|
|
Door entry guard mounting |
