Removing Side Step: Notes

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Cover add-on parts and adjacent areas.

Protect components against scratching and damage.

NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .

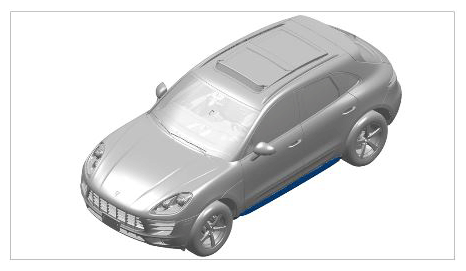

    G11981388

    Installation position of step

  1. Unscrew and remove fastening screws -1-  securing the bottom of the step to the underbody.

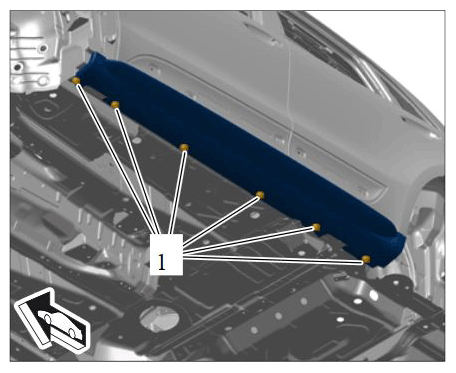

    G11981389

    Bottom of step

  2. Unclip step.
    1. 2.1. Unclip the step, starting from the rear -A-  , using an assembly wedge and remove it -B-  .

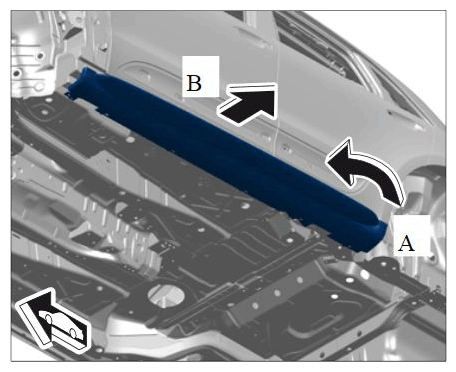

      G11981390

      Unclipping step
