Removing Ventilation Guide
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

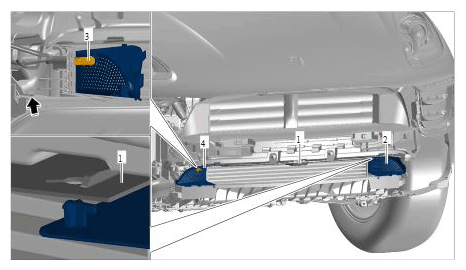

- Unclip ventilation guides -2, 4-
at the sides of the holder -arrow-
and swivel them aside.
- Pull outside temperature sensor -3- out of the right ventilation guide -4-
.
- Guide ventilation guides -2, 4-
out of the air guide -1-
and remove them.
Ventilation guide
