Removing Front Logo

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

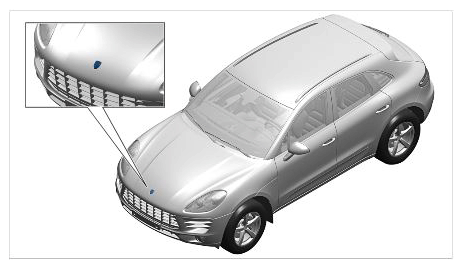

G11981380

Installation position

  1. Open the front lid.
  2. Remove logo.

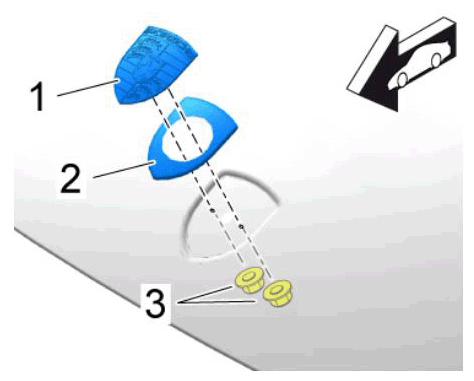

    G11981381

    Removing logo and base

    1. 2.1. Screw off fastening nuts -3-.
    2. 2.2. Remove logo -1-  and base -2-  .
