Removing Rear Brake Discs

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The brake and electronic parking brake must not be operated when the brake calliper is removed.
  1. Unscrew fastening screw -arrow  - on the brake disc. Hold the brake disc securely while doing this.

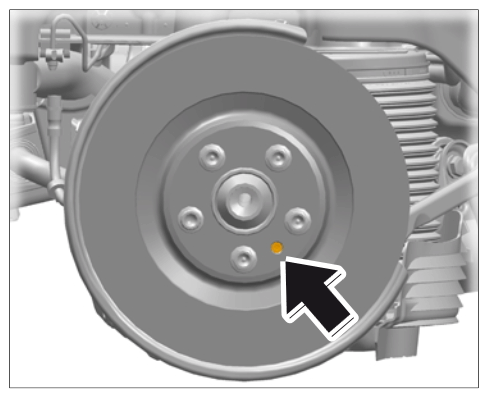

    G11977615

    Mounting for brake disc

  2. Remove brake disc from the wheel hub.
