Wheel Hub Lateral Runout

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The front face of the wheel hub must not be corroded. If necessary, clean with fine emery cloth.

  • Measure the wheel hub lateral runout at the front face of the wheel hub. You should always measure the external and internal diameters of the wheel bolt area.
  1. Remove brake disc. → 465019 REMOVING AND INSTALLING FRONT BRAKE DISC
  2. Fit adapter dial gauge set with ball joint arm Nr.147-1  at a suitable position on the wheel bearing housing. Fit the dial gauge with some preload. → Dial gauge on wheel hub

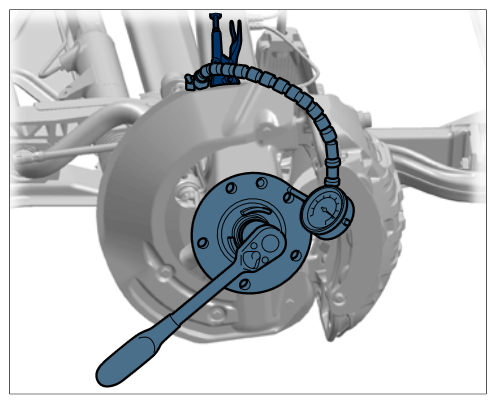

    G11977595

    Dial gauge on wheel hub
