Removing rear door panel

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .

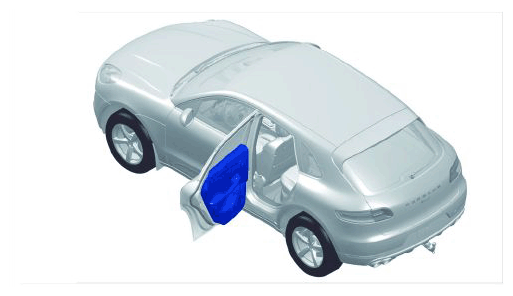

G11981757

Installation position

  1. Unclip cover -1-  on door opener using a suitable tool.

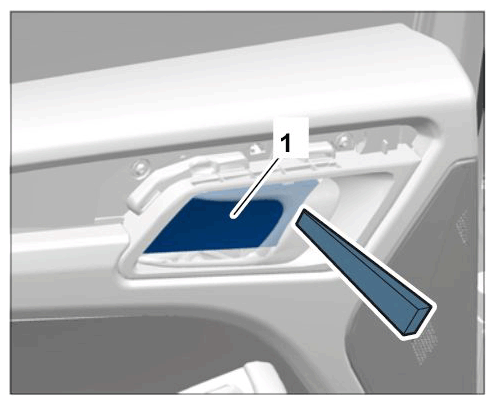

    G11981758

    Cover on door opener

  2. Unscrew and remove fastening screws -1-  on door panel.

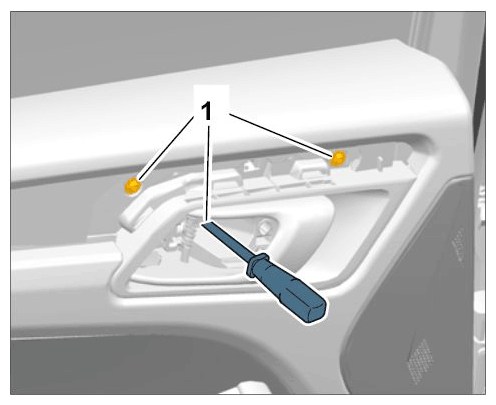

    G11981759

    Door panel mounting

  3. Unclip door light or reflector -1-  using a suitable tool and disconnect plug connection.
    G11981760

    Light in door panel

  4. Unscrew and remove fastening screw -1-  at the bottom of the trim panel.

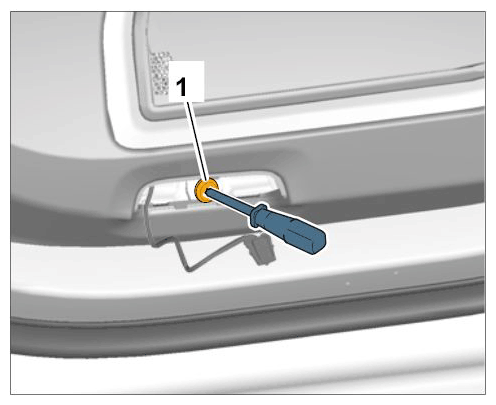

    G11981761

    Mounting at bottom of door

  5. Guide door panel up out of the bracket and swivel it forward.

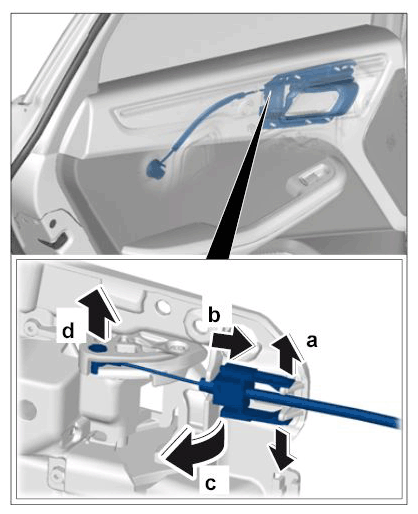

  6. Disengage cable for door opener.
    G11981762

    Disengaging cable for door opener

    1. 6.1. Spread locking lugs outwards -A-  .
    2. 6.2. Remove cable by pulling it to the rear out of the guide -2-  (-B-  ).
    3. 6.3. Swivel cable in direction of arrow until the driver at the front is free -C-  .
    4. 6.4. Remove driver from the door opener -D-  .
  7. Release and disconnect plug connection for wire harness at the door control unit.
