Removing front door panel

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

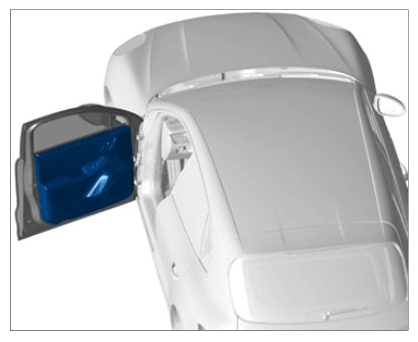

G11981740

Installation position of door panel

  1. Unclip cover -1-  on door opener using a suitable tool.

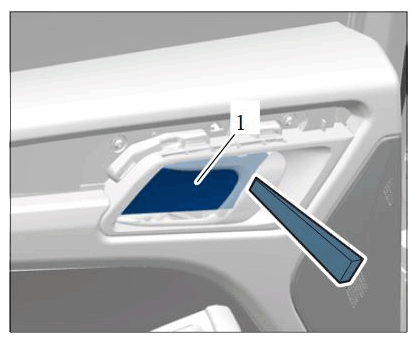

    G11981741

    Cover on door opener

  2. Unclip reflector or door light -1-  using a suitable tool and release and disconnect plug connection.

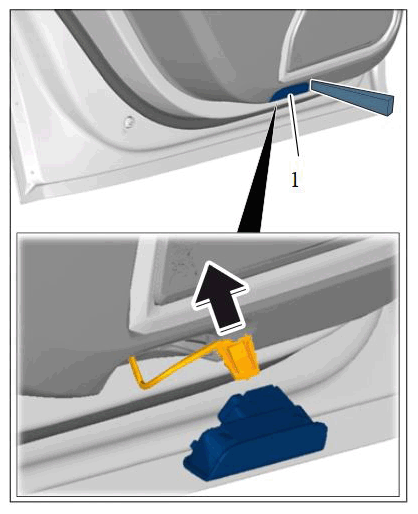

    G11981742

    Light in door panel

  3. Unscrew and remove fastening screws -1-  on door panel.

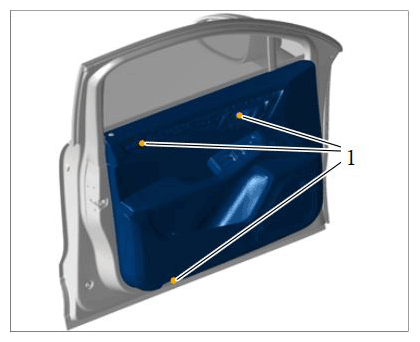

    G11981743

    Door panel mounting

  4. Guide door panel up out of the bracket and swivel it to the rear.
  5. Disengage cable for door opener.

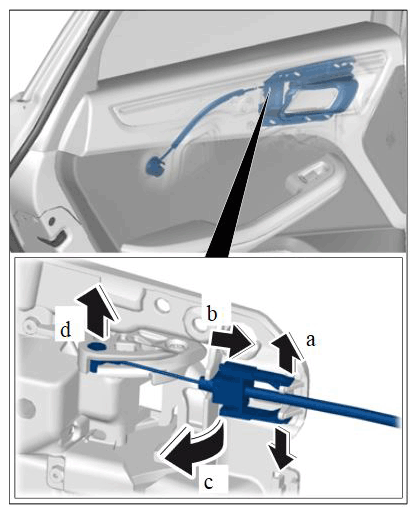

    G11981744

    Disengaging cable for door opener

    1. 5.1. Spread locking lugs outwards -A-  .
    2. 5.2. Remove cable by pulling it to the rear out of the guide -2-  (-B-  ).
    3. 5.3. Swivel cable in direction of arrow until the driver at the front is free -C-  .
    4. 5.4. Remove the driver from the door opener -D-  .
  6. Release and disconnect plug connection for wire harness at the door control unit.
  7. Release and disconnect plug connections for loudspeaker wire harness.
