Removing and installing front spring strut: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order. Before installing, give the parts a visual check. Replace brake caliper fastening screws.
Do not grease screwed connections in Dacromet finish - aluminium colour. Use correct tightening torques.

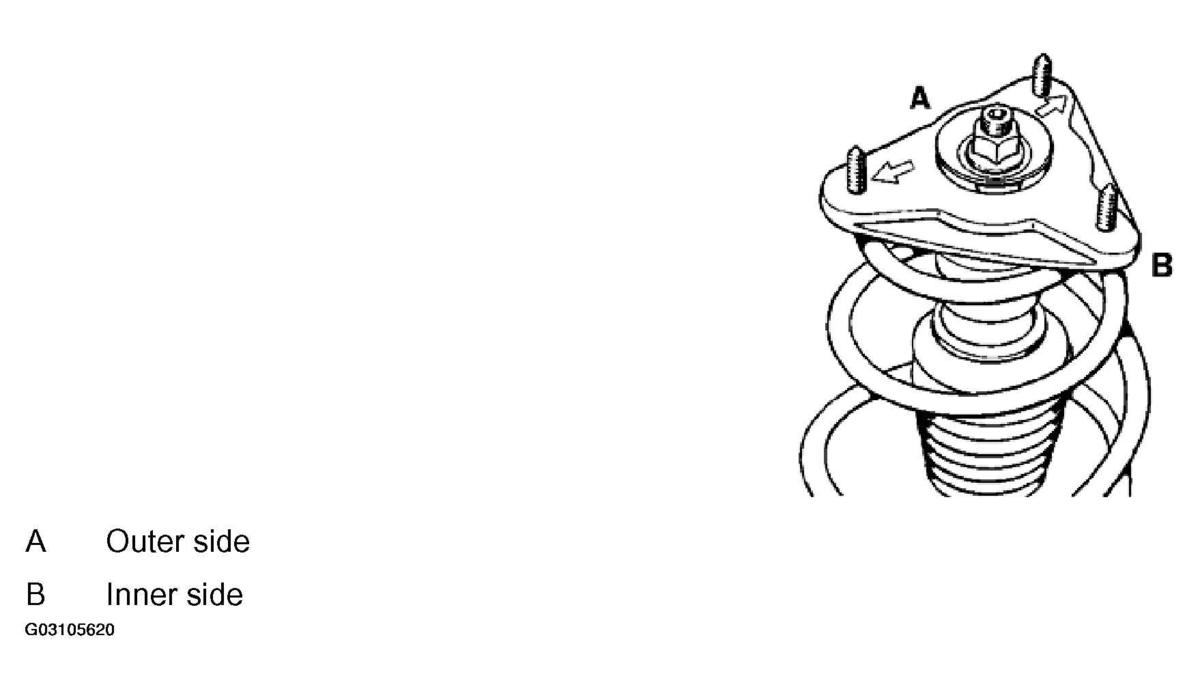

Insert spring strut into vehicle. Note the installed position of the spring strut mount. The arrow markings must point to the outer side of the vehicle (A). The shock-absorber piston rod is thereby shifted outwards. Use new fastening nuts. Before tightening the fastening nuts, adjust spring strut mount in accordance with the applied marking (position of the three collar nuts). Use correct tightening torque.

Fig 1: Identifying Correct Positioning Of Spring Strut Mount
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check and adjust steering-geometry values at the front axle.
NOTE:
- If assembly work was performed or parts replaced that affect the vehicle height, a complete wheel alignment is necessary.
