Disassembling and assembling front spring strut: Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

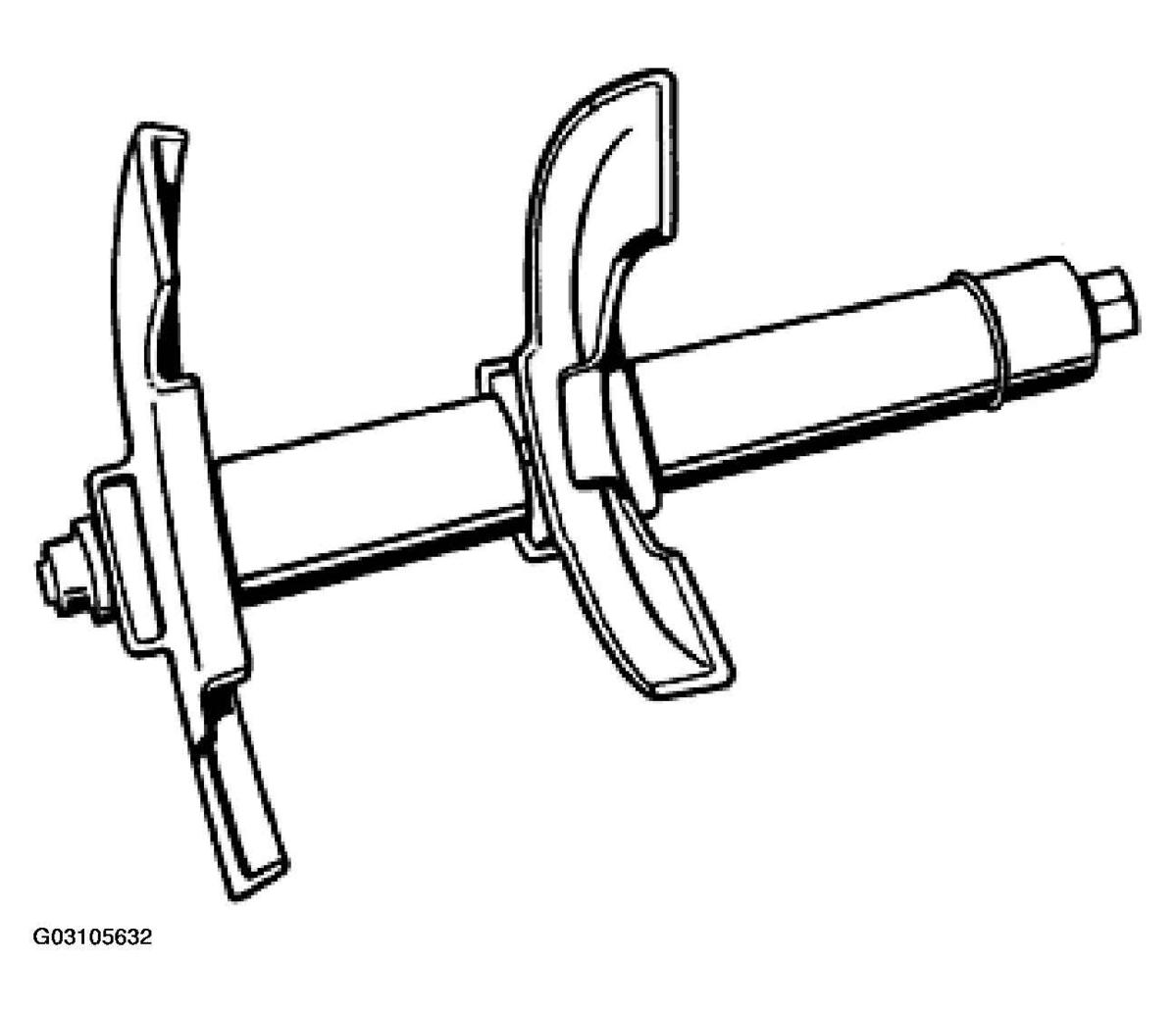

Fig 1: View Of Special Tools For Disassembling And Assembling Front Spring Strut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS DESCRIPTION

No.	Designation	Special tool	Explanation
-	Spring clamp, e.g. from Klann, with spring holder		Commercially available Clamping range of spring holder up to 165 mm spring diameter on one side and 195 mm spring diameter on the other side
