Disassembly and assembly instructions: Disassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Tension the coil spring with the spring clamp until the piston rod is relieved.

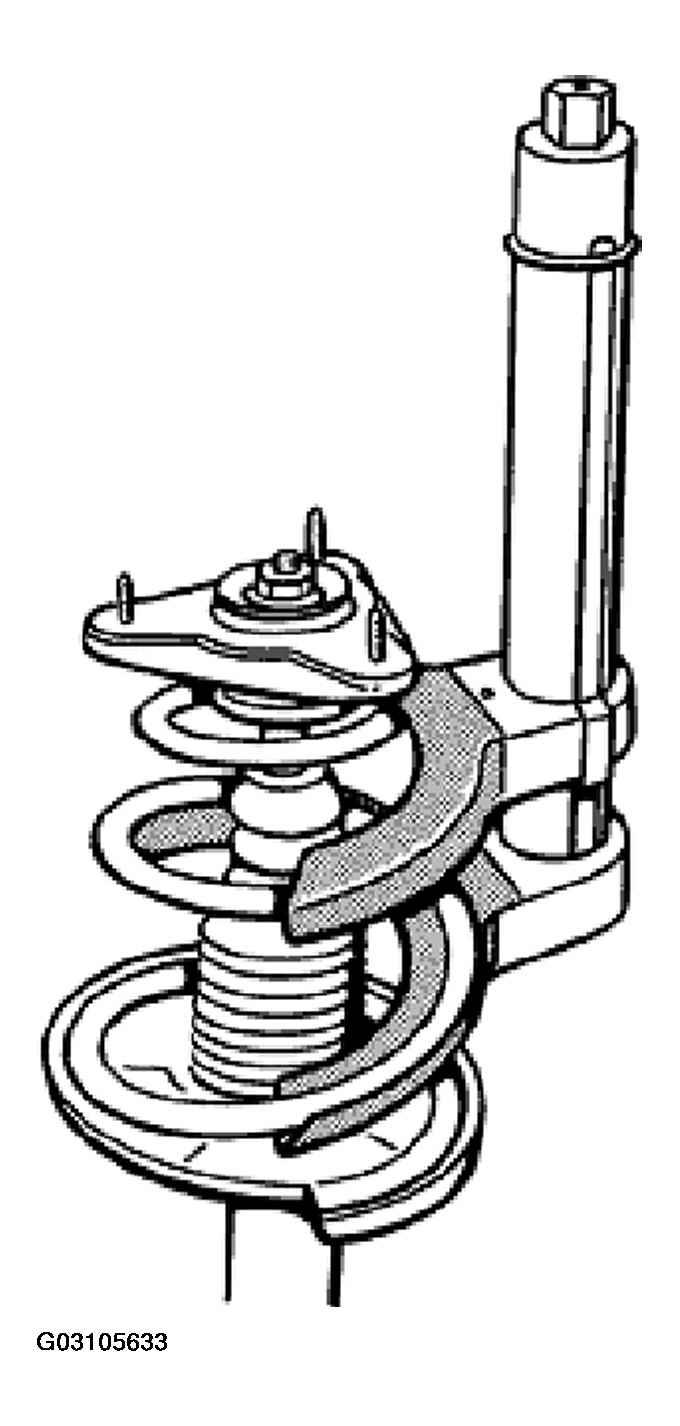

Fig 1: Tensioning Coil Spring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
To undo the connection (piston rod to spring strut mount) counter at the piston rod with special tool 9630 or a 7-mm Allen key.
Important: Never use an impact bolter to loosen or tighten the fastening nut.
Remove all parts from the piston rod.

NOTE:

When installing new parts, observe the allocation according to the Spare Parts Catalogue.
