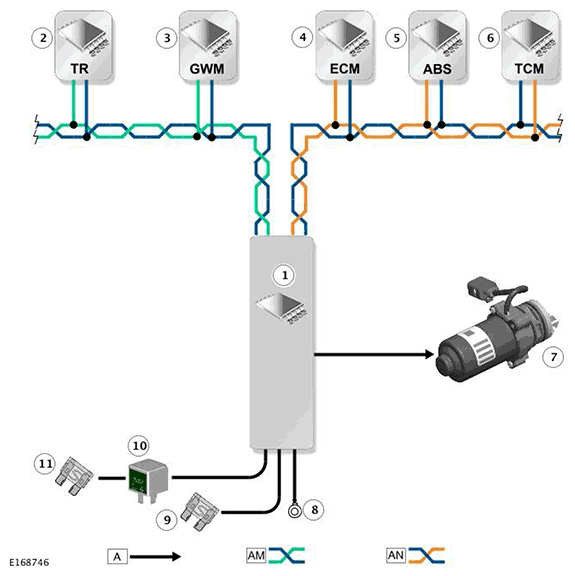

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport, 2017 Land Rover Discovery Sport, 2016 Land Rover Discovery Sport, and 2015 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A =
Hardwired; AM =
High speed CAN chassis systems; AN =
High speed CAN powertrain systems
| ITEM | DESCRIPTION |
|---|---|
| 1 | Active on-demand coupling control module |
| 2 | Terrain Response (TR) switchpack |
| 3 | Gateway Module (GWM) |
| 4 | Engine Control Module (ECM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Transmission Control Module (TCM) |
| 7 | Electric motor and hydraulic pump assembly |
| 8 | Ground |
| 9 | Fuse 30A - located in Rear Junction Box (RJB) |
| 10 | Ignition relay - located in Central Junction Box (CJB) |
| 11 | Fuse 5A - located in CJB |
