General Equipment

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
EQUIPMENT NAME
Engine stand
WARNING:
  • Failure to support the engine and transmission may cause personal injury.
  • Be prepared to collect escaping fuel.
  • Be prepared to collect escaping coolant.
  • Be prepared to collect escaping oil.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure can be completed without the removal of the Air Conditioning (A/C) refrigerant.
  1. Always follow the fuel system health and safety precautions, when preforming any repairs to the fuel system. Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
  2. Disconnect the startup battery ground cable. Refer to: SPECIFICATIONS .

  3. Raise and support the vehicle on a suitable 2 post lift. Refer to: JACKING AND LIFTING .
  4. Remove the engine cover. Refer to: ENGINE COVER .
  5. Remove the air filter housing. Refer to: AIR CLEANER .
  6. Remove the startup battery tray. Refer to: BATTERY TRAY .
  7. Remove the right side headlamp. Refer to: HEADLAMP ASSEMBLY .
  8. Partially drain the cooling system. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING .
  9. Remove the front subframe. Refer to: FRONT SUBFRAME .
  10. Drain the transmission. Refer to: TRANSMISSION FLUID DRAIN AND REFILL .

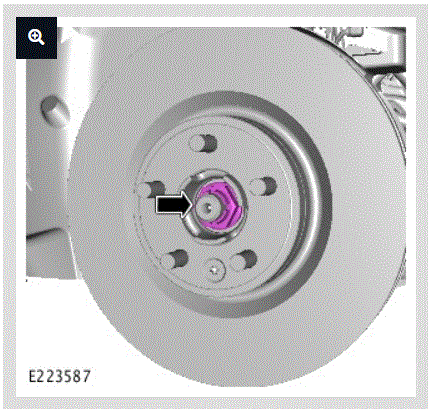

  11. G00613513
    • Remove and discard the front left halfshaft nut.
    • Retain the nut for installation.
    • Repeat this step for the right side.

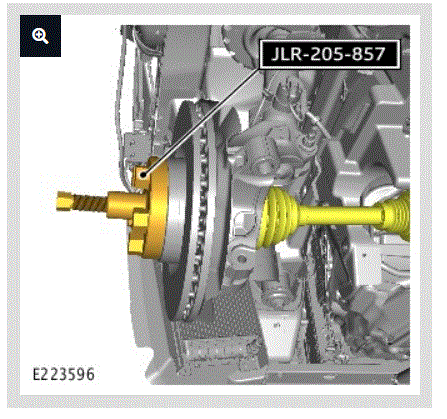

  12. G00613514
    • Using the special tool, release the front left halfshaft from the wheel knuckle. Special Tool(s): 205-857
    • Repeat this step for the right side.

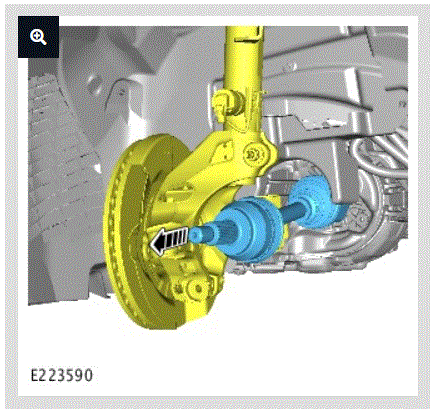

  13. G00613515

    Using a suitable tool, remove the front left halfshaft.

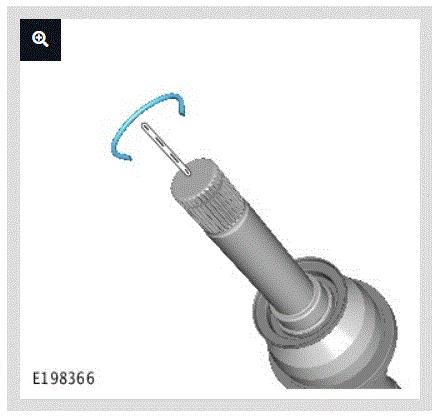

  14. G00613516

    Using a suitable tool, remove the front left halfshaft circlip.

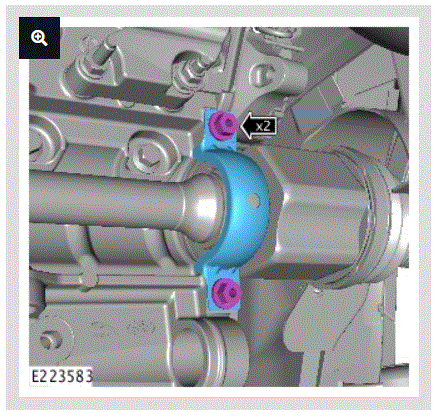

  15. G00613517
    • Remove and discard the 2 front right halfshaft support bearing nuts.
    • Remove the halfshaft support bearing bracket.

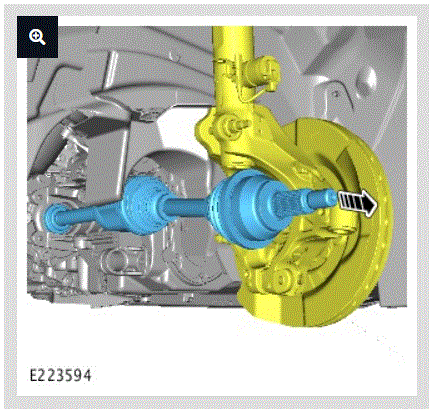

  16. G00613518

    Using a suitable tool, remove the front right halfshaft.

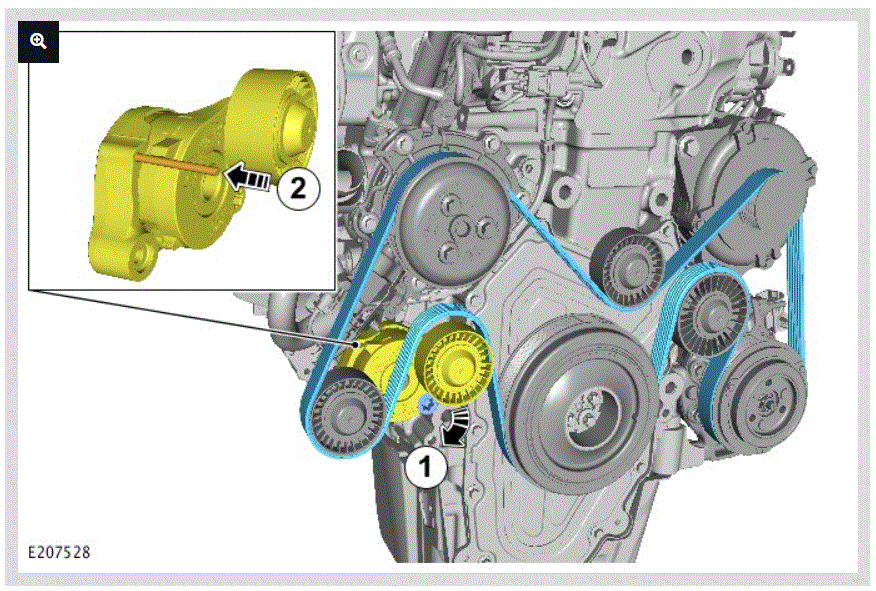

  17. G00613519
    • Release the accessory drive belt tensioner.
    • Install a suitable tool to lock the accessory drive belt tensioner in the removal position.
    • Remove the accessory drive belt.

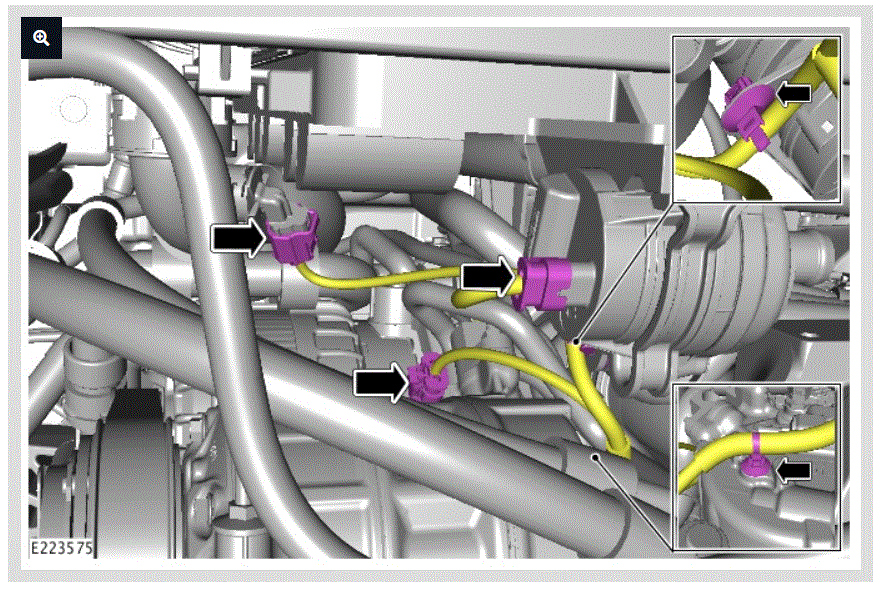

  18. G00613520
    • Disconnect the 3 electrical connectors.
    • Release the 2 wiring harness clips.

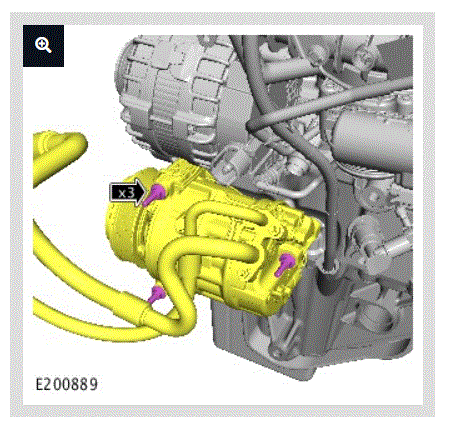

  19. CAUTION: Make sure the Air Conditioning (A/C) compressor is correctly supported.
    G00613521

    Remove the 3 bolts and position the Air Conditioning (A/C) compressor away from the engine assembly.

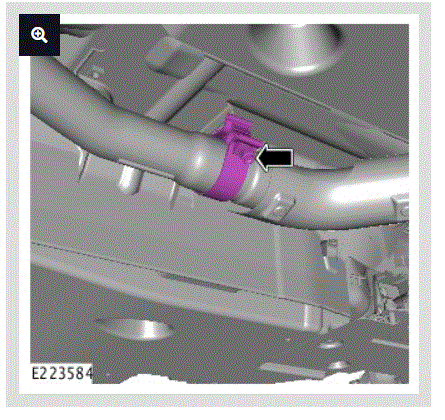

  20. G00613522

    Release the exhaust clamp.

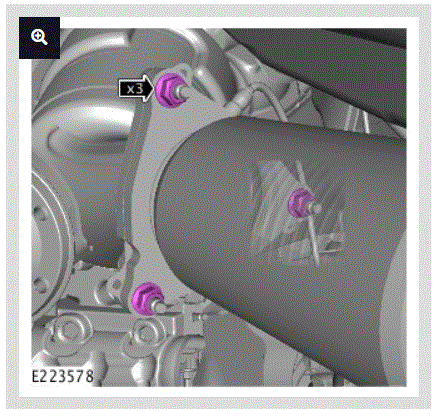

  21. G00613523

    Remove and discard the 3 exhaust nuts.

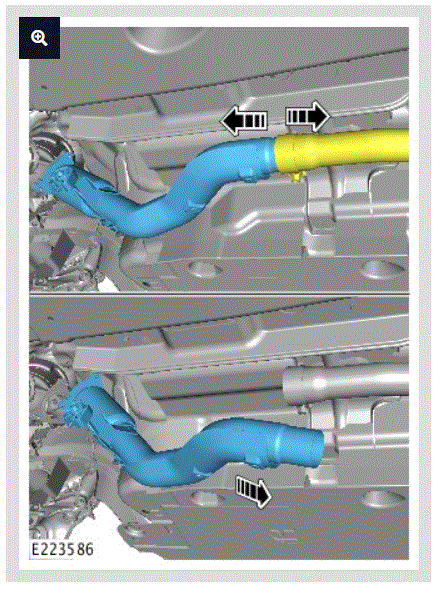

  22. G00613524
    • Release the exhaust joint.
    • Remove the exhaust intermediate pipe.
    • Remove and discard the clamp.

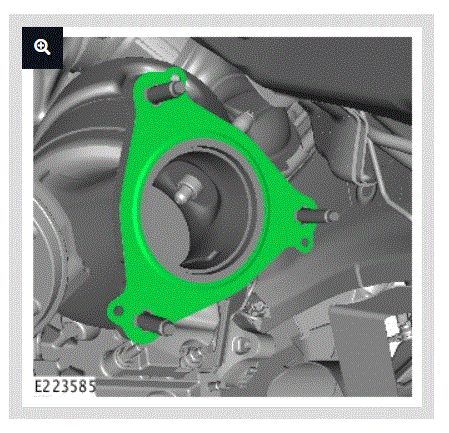

  23. NOTE: If equipped.
    G00613525

    Remove and discard the exhaust gasket.

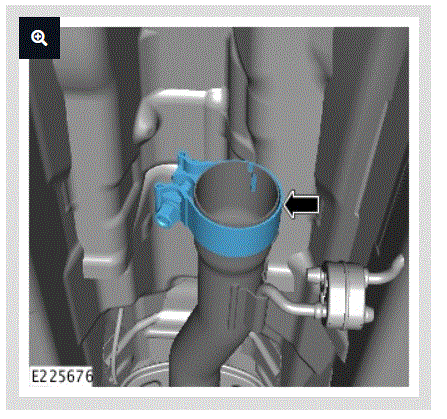

  24. G00613526

    Remove and discard the clamp.

  25. CAUTION: To avoid damage to the joint, do not allow the driveshaft to hang.

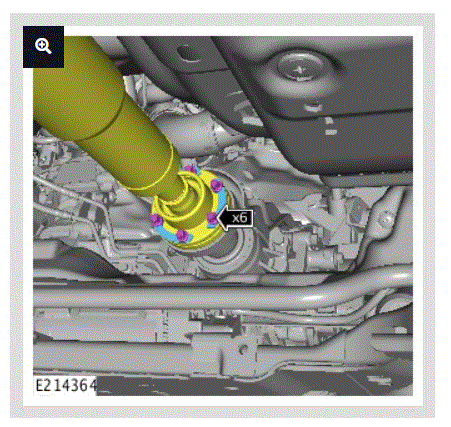

    G00613527

    Remove and discard the 6 bolts and position the driveshaft away from the engine assembly.

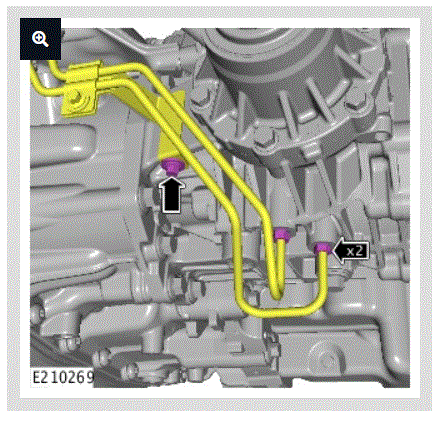

  26. G00613528
    • Release the 2 active driveline unions.
    • Remove the bolt and position the active driveline pipes away from the engine assembly.

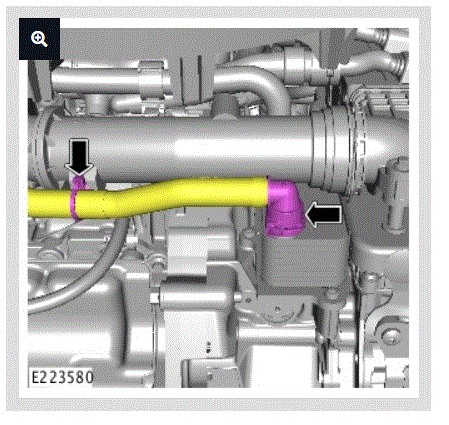

  27. G00613529
    • Disconnect the coolant hose from the transmission cooler.
    • Release the coolant hose clip.
    • Remove and discard the clamp.

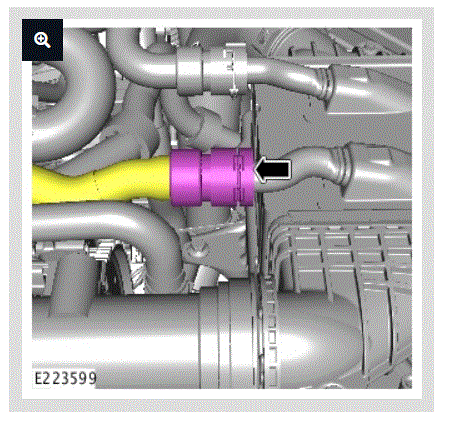

  28. G00613530

    Disconnect the coolant hose from the charge air cooler.

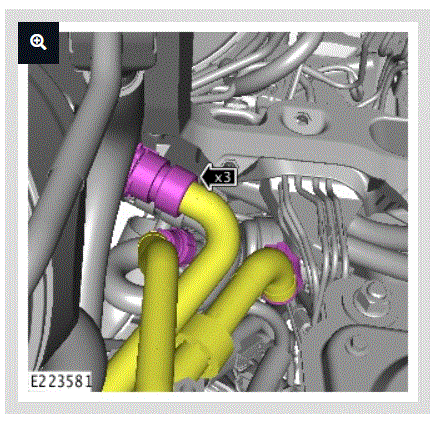

  29. G00613531

    Disconnect the 3 coolant hoses.

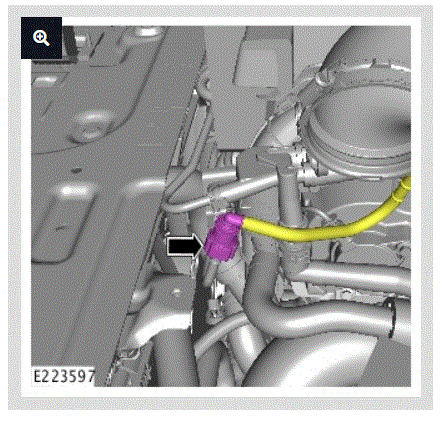

  30. G00613532

    Disconnect the vacuum pipe.

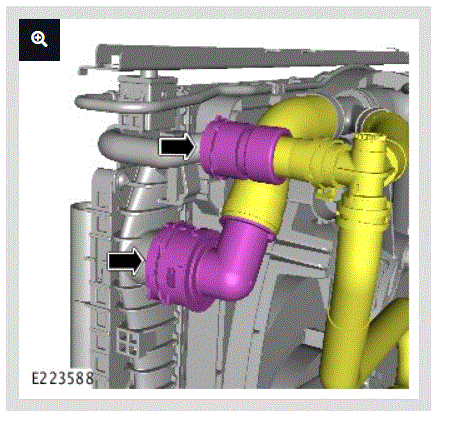

  31. G00613533

    Disconnect the 2 coolant hoses from the radiator.

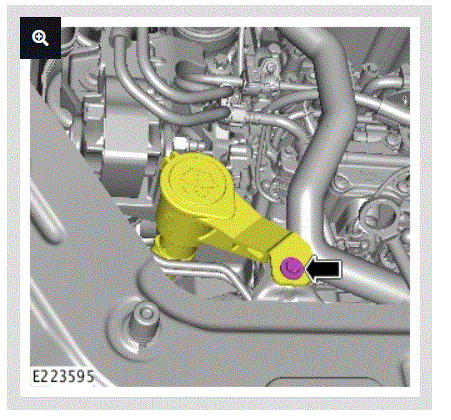

  32. G00613534

    Remove the bolt and position the windshield washer filler neck to allow access to the coolant pipes.

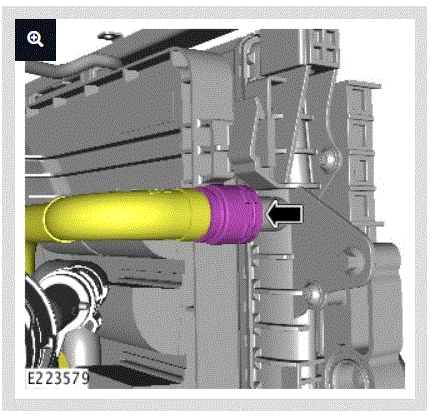

  33. G00613535

    Disconnect the coolant hose from the radiator.

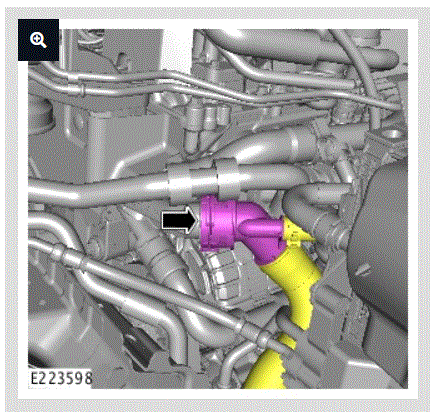

  34. G00613536

    Disconnect the coolant hose from the coolant housing.

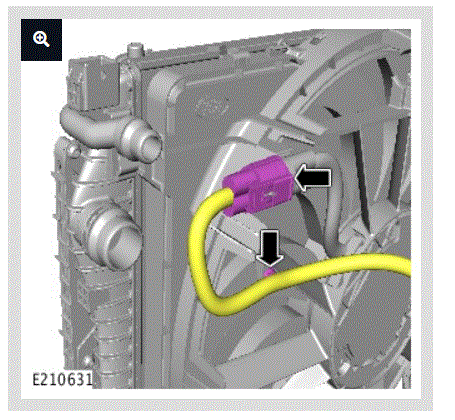

  35. G00613537

    Disconnect the electrical connector and release the clip.

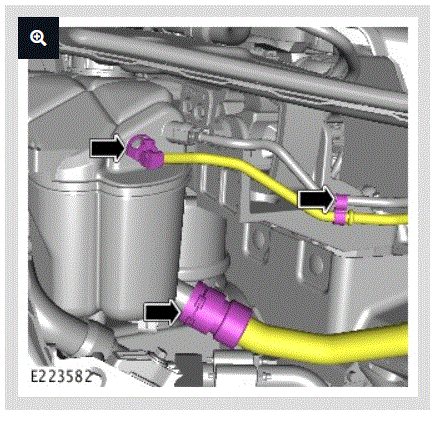

  36. G00613538
    • Disconnect the coolant hose from the coolant expansion tank.
    • Disconnect the degas pipe and release the clip.

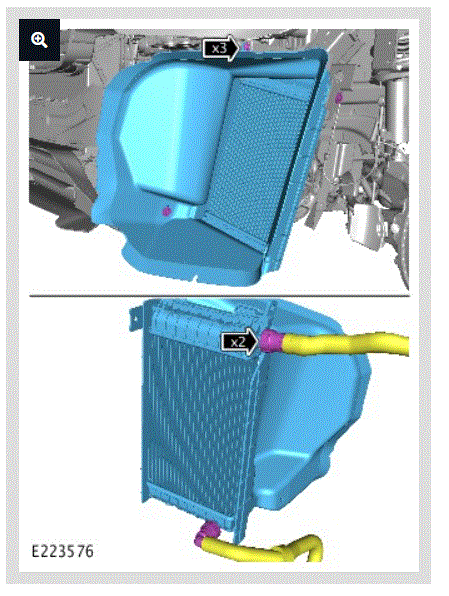

  37. G00613539
    • Remove the 3 bolts.
    • Disconnect the 2 coolant hoses from the auxiliary radiator.
    • Remove the auxiliary radiator assembly.

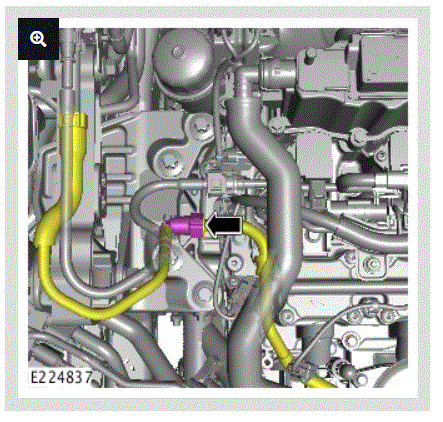

  38. G00613540

    Disconnect the breather pipe.

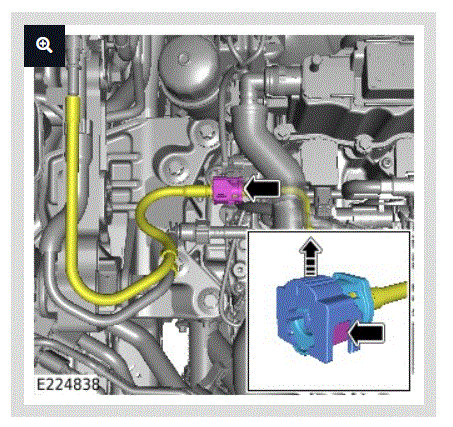

  39. WARNING: This step involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
    G00613541

    Disconnect the fuel pipe.

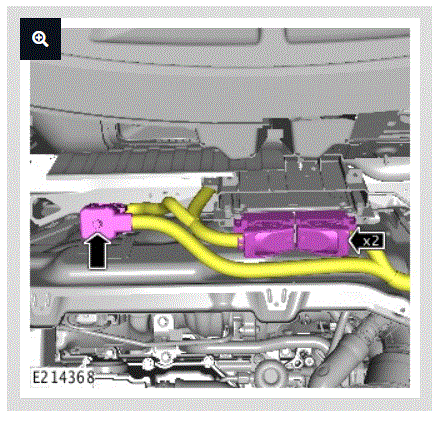

  40. G00613542

    Disconnect the 3 Powertrain Control Module (PCM) electrical connectors.

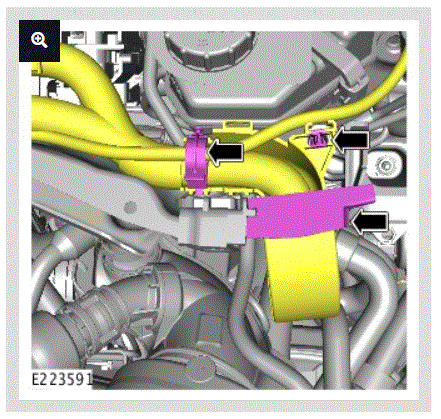

  41. G00613543
    • Release the 2 wiring harness clips.
    • Release the wiring harness mounting rubber.
    • Position the wiring harness away from the bulkhead area.

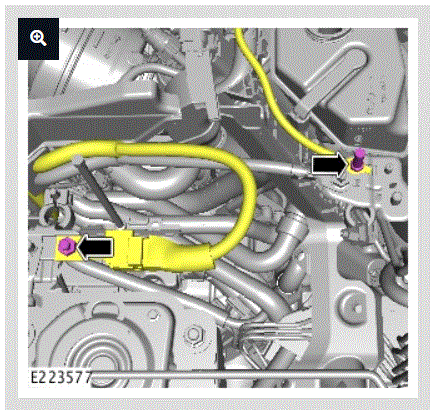

  42. G00613544
    • Remove the nut and disconnect the positive cable.
    • Remove the bolt and disconnect the ground cable.

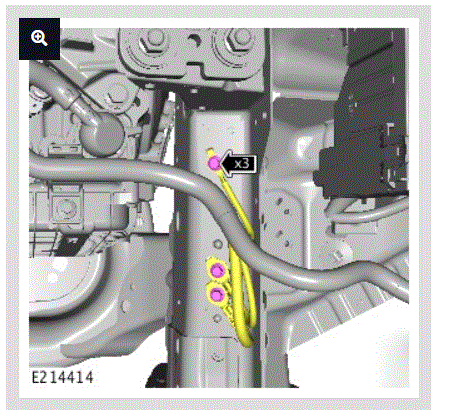

  43. G00613545

    Remove the 3 bolts.

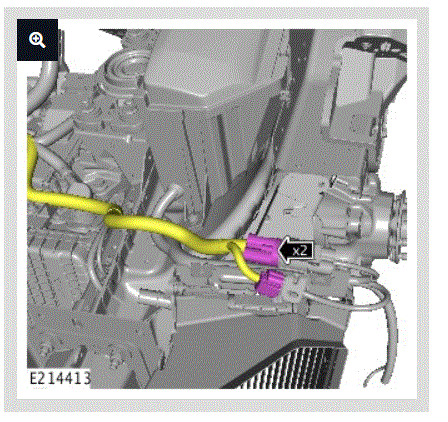

  44. G00613546
    • Disconnect the 2 engine compartment wiring harness electrical connectors.
    • Position the harness away from the left side wheel arch.

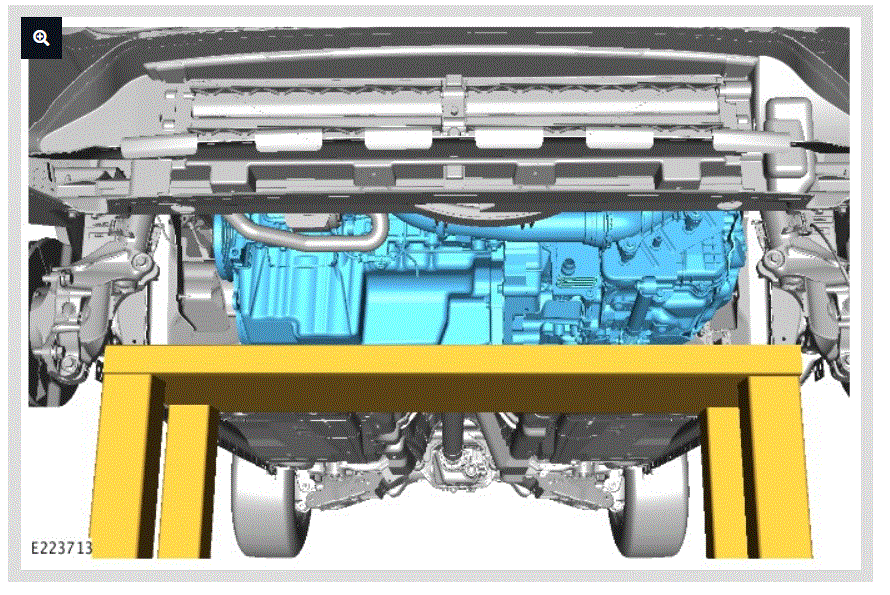

  45. G00613547

    Using a workbench, support the engine and transmission assembly.

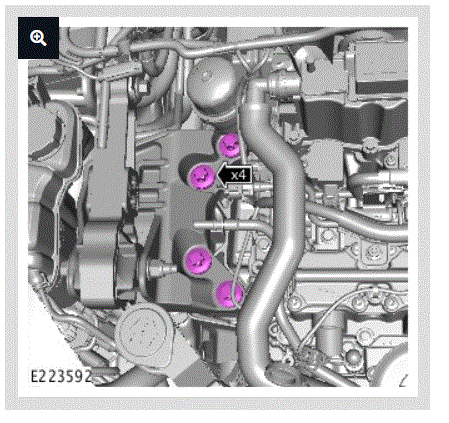

  46. G00613548

    Remove the 4 bolts.

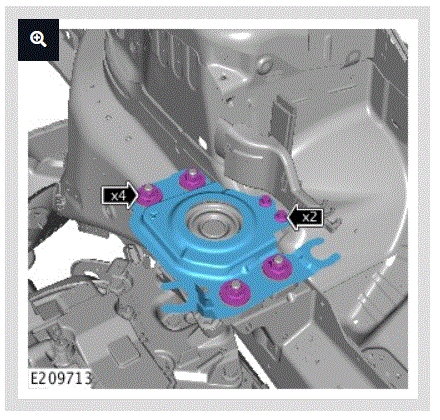

  47. G00613549
    • Remove and discard the 4 nuts.
    • Remove the 2 bolts.
    • Remove the air filter housing bracket.

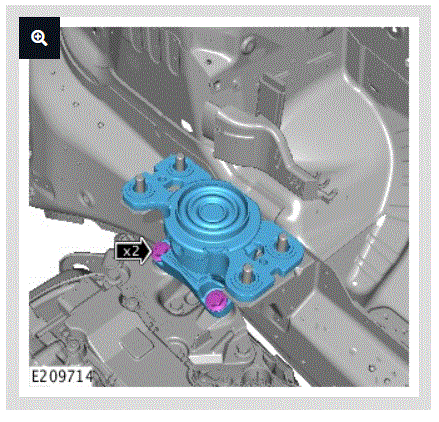

  48. G00613550

    Remove and discard the 2 bolts and remove the left side engine mount.

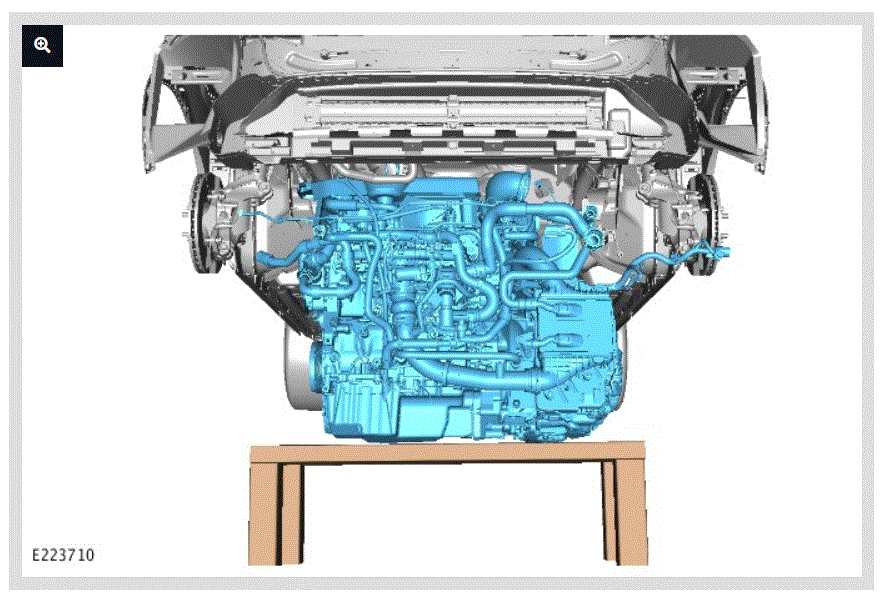

  49. NOTE: This step requires the aid of another technician.
    G00613551

    Support the engine and transmission assembly, and carefully raise the vehicle.

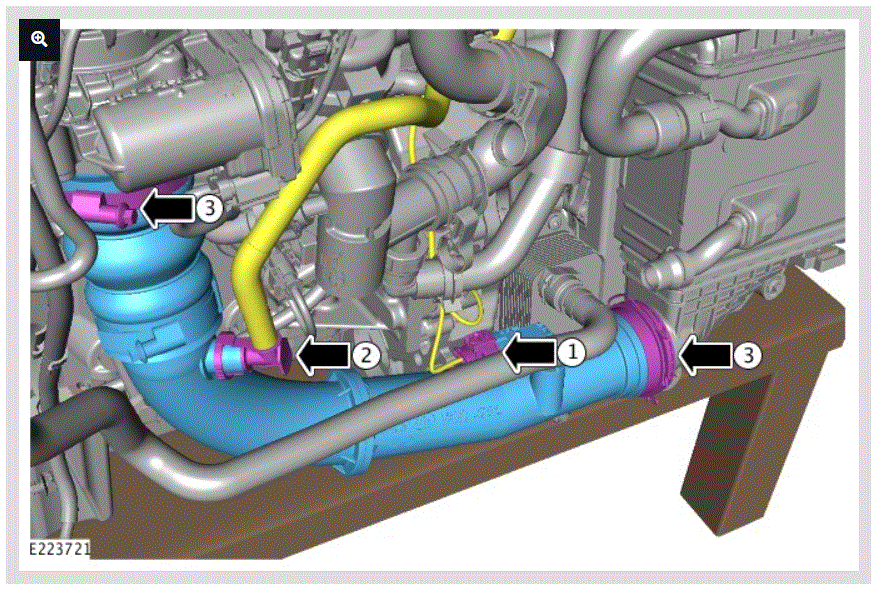

  50. G00613552
    1. Disconnect the electrical connector.
    2. Disconnect the breather pipe.
    3. Disconnect the 2 pipe connectors and remove the charge air outlet pipe.

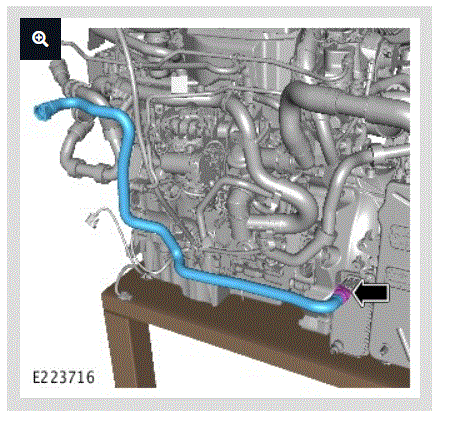

  51. G00613553

    Disconnect the coolant hose and remove from the transmission cooler.

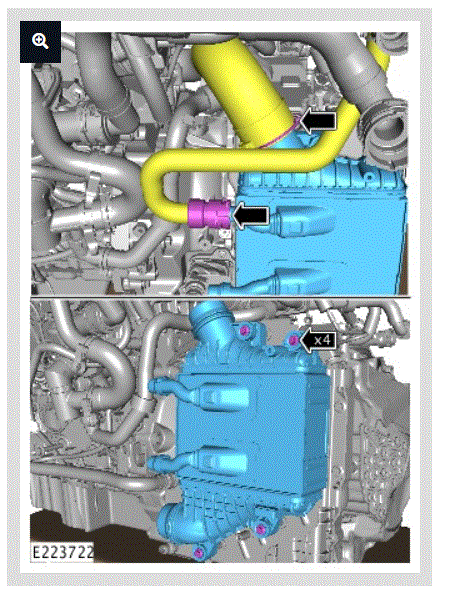

  52. G00613554
    • Disconnect the coolant pipe.
    • Disconnect the charge air cooler intake hose.
    • Remove the 4 bolts and remove the charge air cooler.

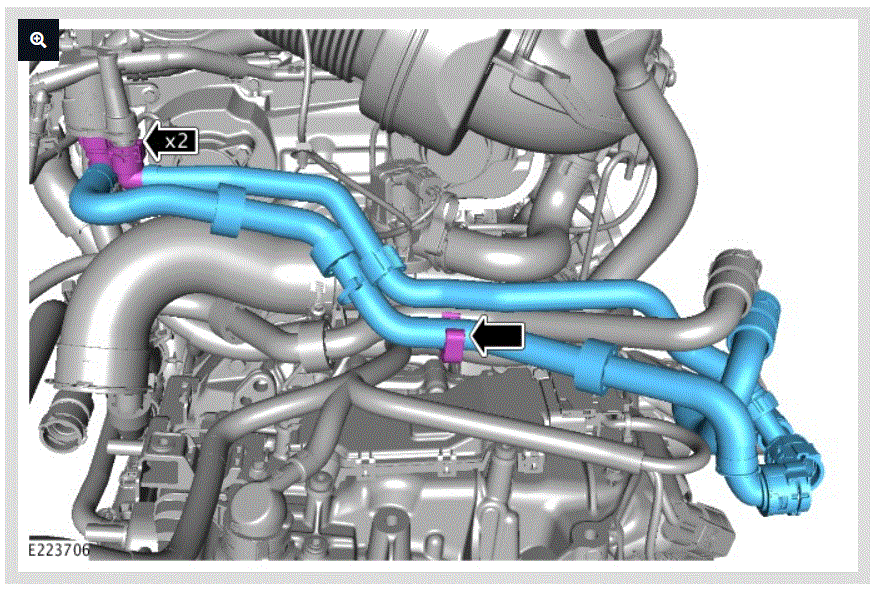

  53. G00613555
    • Disconnect the 2 coolant hoses.
    • Release the coolant hose from the clip.
    • Remove the coolant hose assembly.

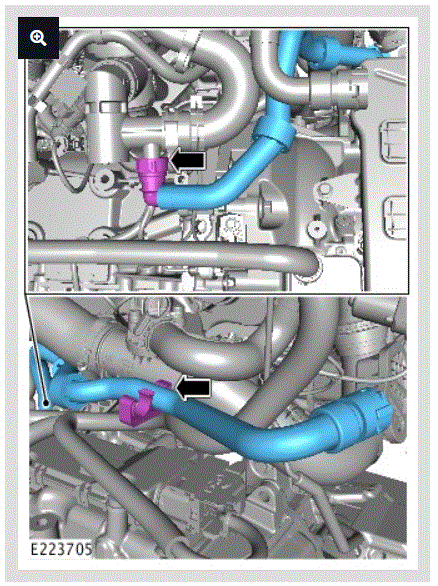

  54. G00613556
    • Disconnect the coolant hose.
    • Release the coolant hose from the clip and remove the coolant hose.

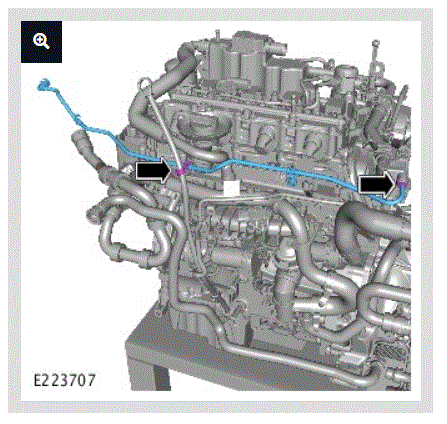

  55. G00613557
    • Release the degas pipe from the clip.
    • Disconnect the degas pipe connector and remove the degas pipe.

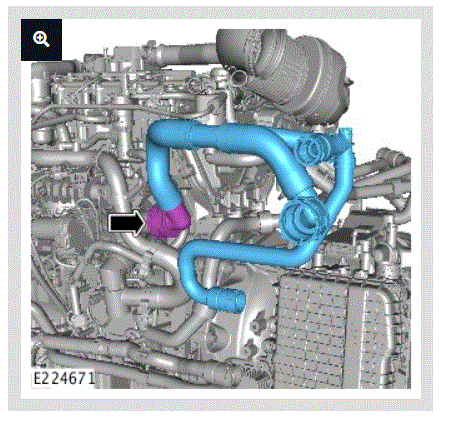

  56. G00613558

    Release the connector and remove the coolant hose assembly.

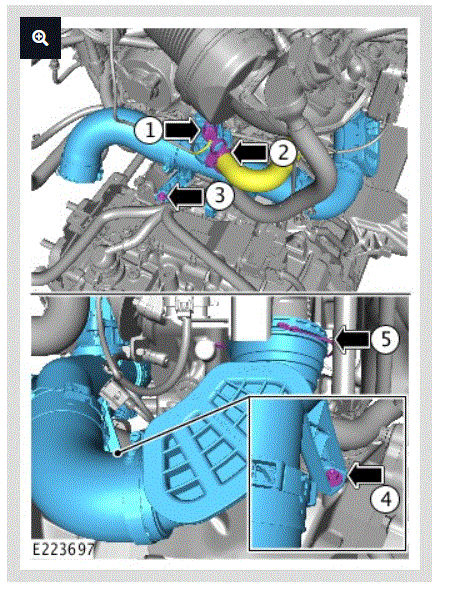

  57. G00613559
    1. Disconnect the electrical connector.
    2. Disconnect the breather hose.
    3. Remove the bolt.
    4. Remove the bolt.
    5. Disconnect the charge air pipe connector and remove the charge air pipe assembly.

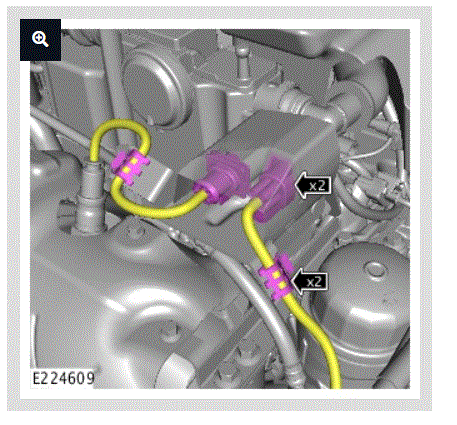

  58. G00613560
    • Disconnect the 2 electrical connectors.
    • Release the 2 wiring harnesses from the 2 clips.

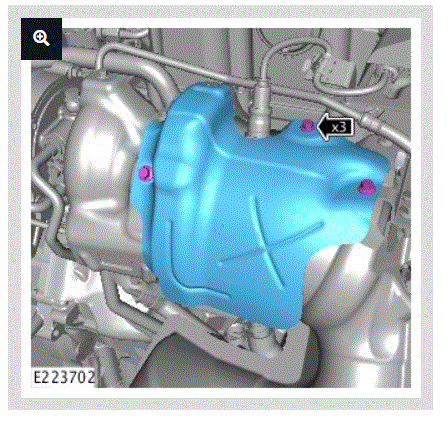

  59. G00613561

    Remove the 3 bolts and the heatshield.

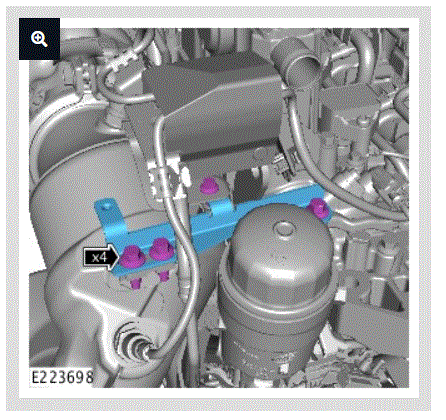

  60. G00613562

    Remove the 4 bolts and the bracket.

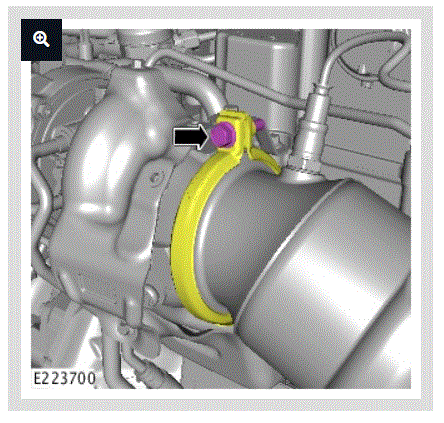

  61. G00613563

    Release the exhaust clamp.

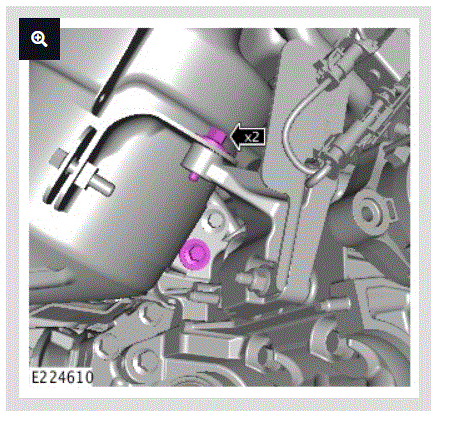

  62. G00613564

    Remove the 2 bolts.

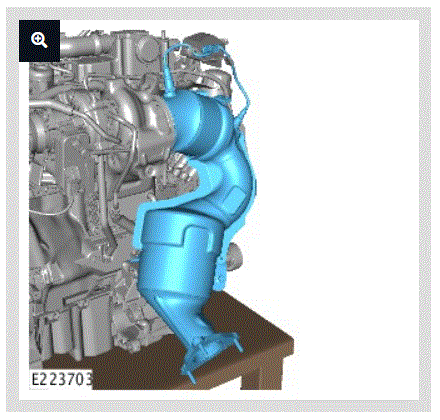

  63. G00613565
    • Remove the catalytic converter assembly.
    • Remove and discard the exhaust clamp.

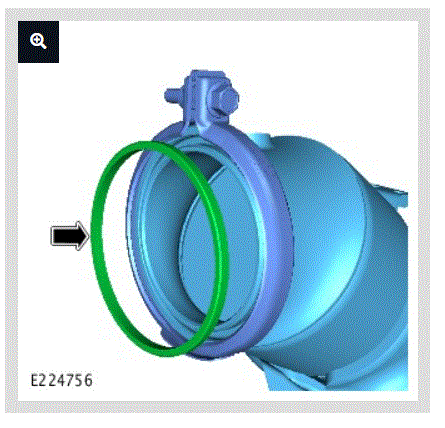

  64. G00613566

    Using a workbench, support the engine and transmission assembly.

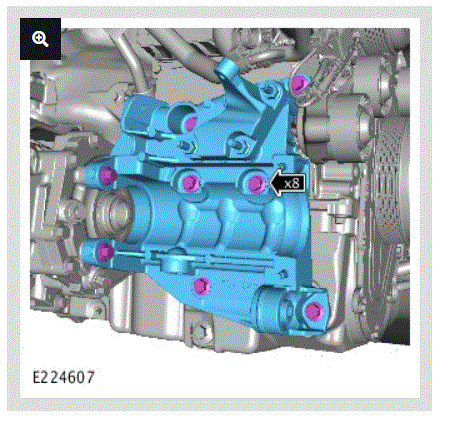

  65. G00613567

    Remove the 8 bolts and remove the halfshaft support bracket.

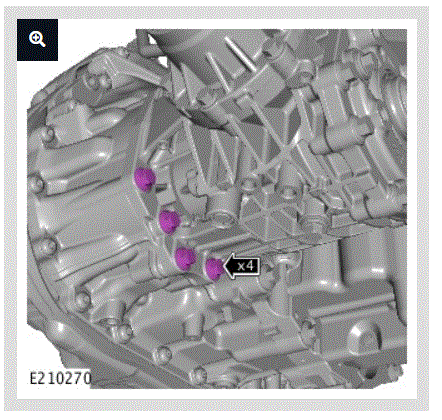

  66. G00613568

    Remove the 4 bolts.

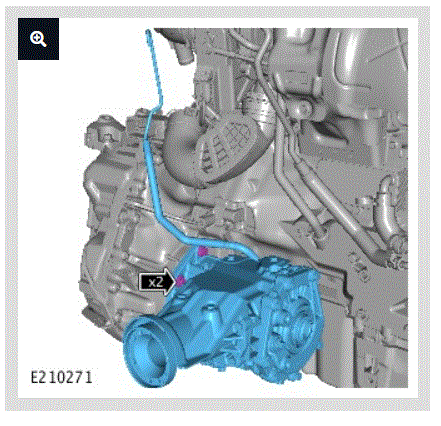

  67. G00613569

    Remove the 2 bolts and remove the Power Transfer Unit (PTU).

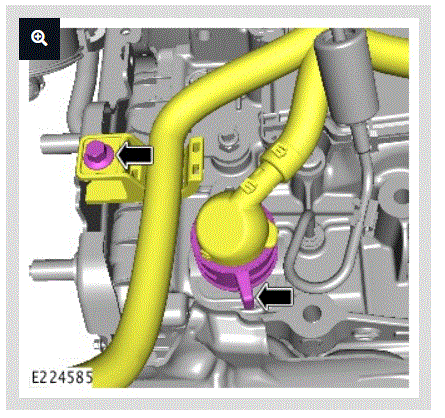

  68. G00613570
    • Disconnect the electrical connector.
    • Remove the bolt.

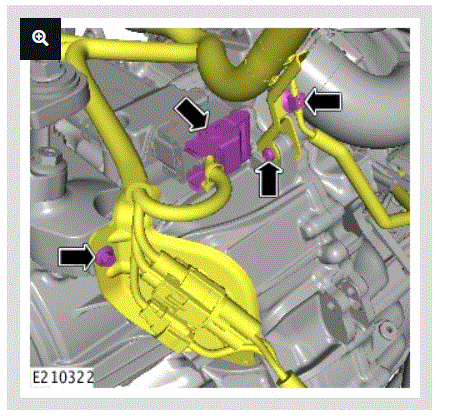

  69. G00613571
    • Disconnect the electrical connector.
    • Remove the 2 bolts.
    • Release the wiring harness clip.
    • Position the harness away from the transmission.

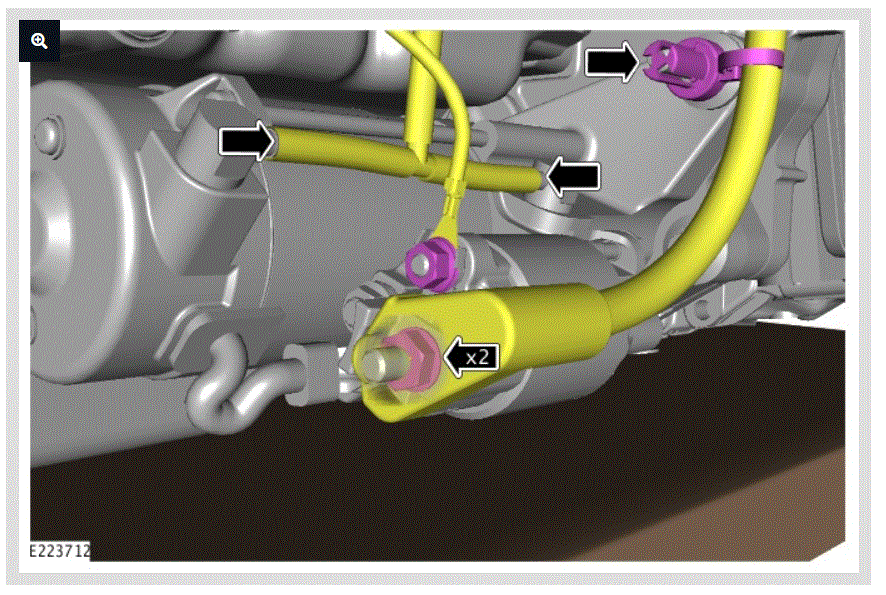

  70. G00613572
    • Disconnect the breather hose.
    • Release the wiring harness clip.
    • Remove the 2 nuts and position the wiring harness away from the starter motor.

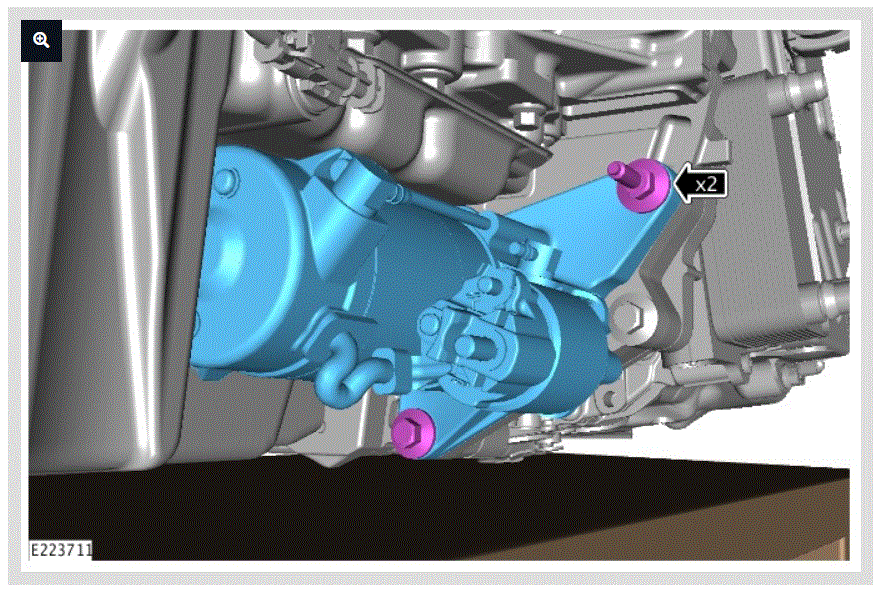

  71. G00613573

    Remove the 2 bolts and remove the starter motor.

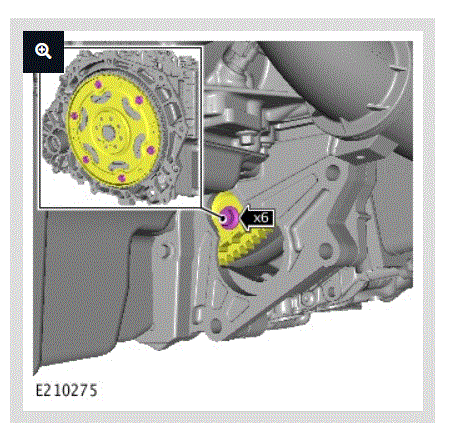

  72. CAUTION: Only rotate the crankshaft pulley in a clockwise direction.
    G00613574

    Remove and discard the 6 drive plate bolts.

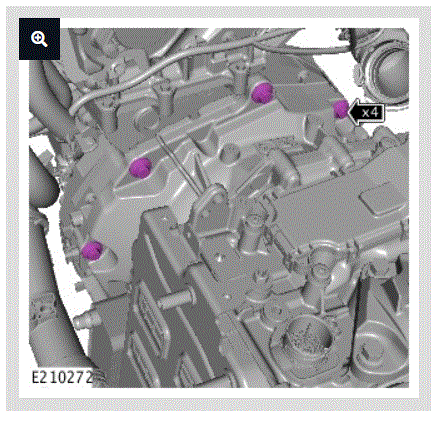

  73. G00613575

    Remove the 4 upper transmission bolts.

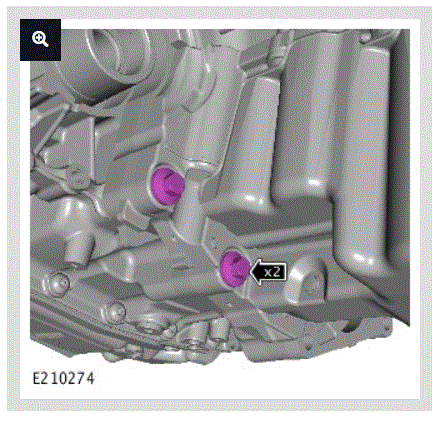

  74. G00613576

    Remove the 2 lower transmission bolts.

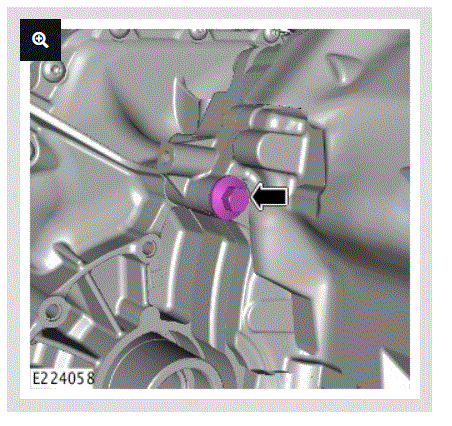

  75. G00613577

    Remove the transmission bolt.

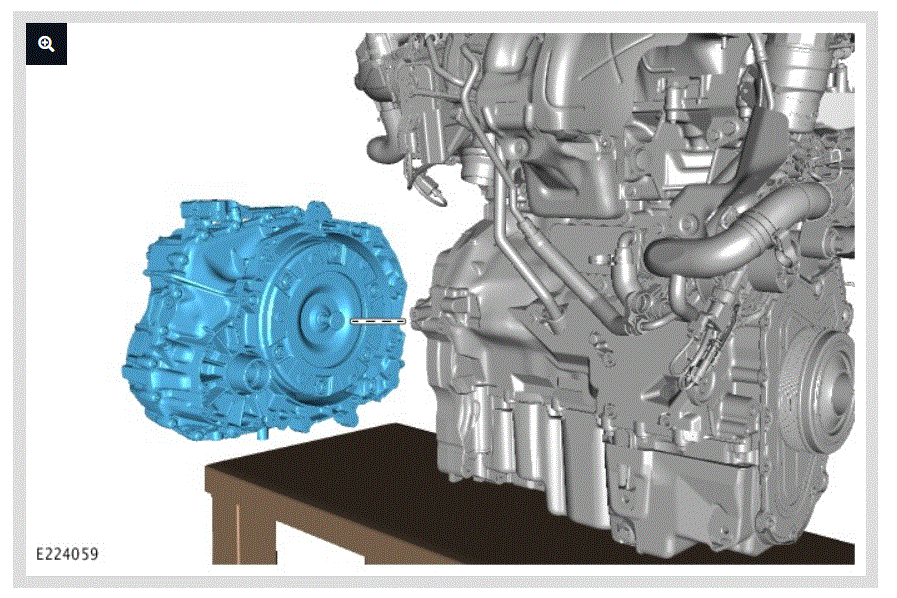

  76. WARNING: Remove the transmission bolt.
    NOTE: This step requires the aid of another technician.
    G00613578

    Remove the transmission assembly.

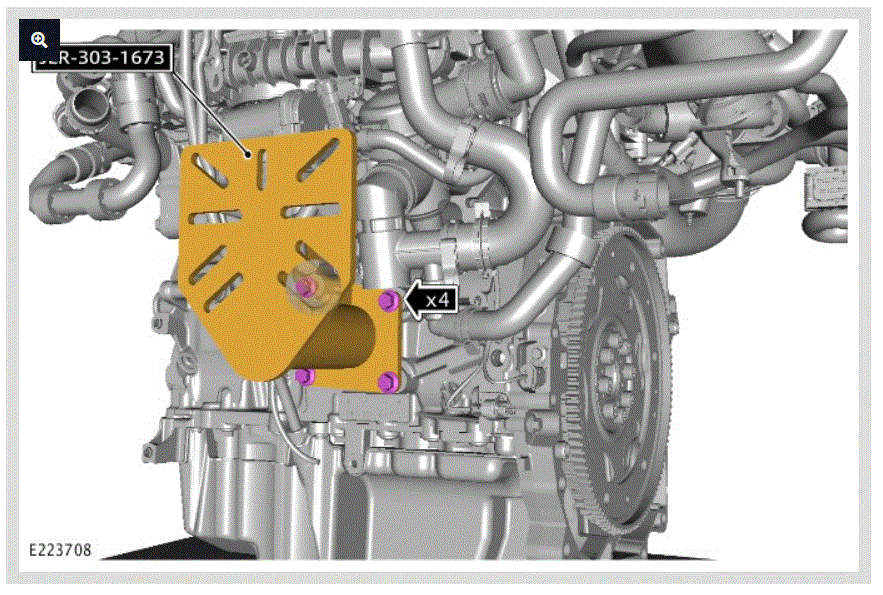

  77. G00613579

    Install the special tool to the position illustrated. Install and tighten the 4 bolts.

    Special Tool(s): JLR-303-1673 Torque: 40 Nm

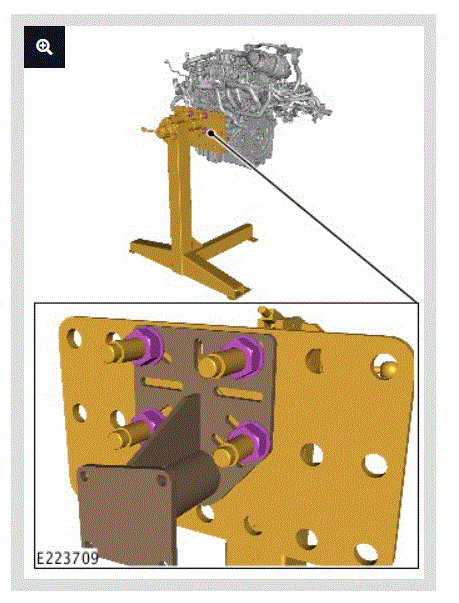

  78. NOTE: This step requires the aid of another technician.
    G00613580

    Install the engine assembly onto a suitable engine stand. General Equipment: Engine stand
