Noise, Vibration And Harshness Pads
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

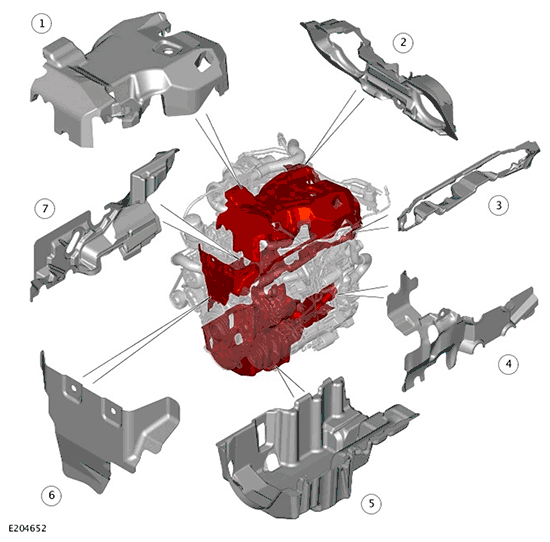

| ITEM | DESCRIPTION |
|---|---|
| 1 | Noise, Vibration and Harshness (NVH) pad - Continuous Variable Valve Lift (CVVL) |
| 2 | Noise, Vibration and Harshness (NVH) pad - Cylinder head top |
| 3 | NVH pad - Cylinder head rear |
| 4 | NVH pad - Left upper |
| 5 | NVH pad - Cylinder block left |
| 6 | NVH pad - Oil pan |
| 7 | NVH pad - Front upper |
| 8 | NVH pad - Cylinder block right |
Noise, Vibration and Harshness (NVH) pads are fitted on the Ingenium I4 2.0L Petrol engine in order to reduce NVH experienced by the driver or passenger(s). The pads are made of either a PUR foam or a multi-layer mixed fiber and resin laminate composite depending on application.
The NVH package consists the following:
- A pad for each side of the engine cylinder block
- An engine cover located on the top of the engine
- An oil pan cover.
