Lubrication System
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

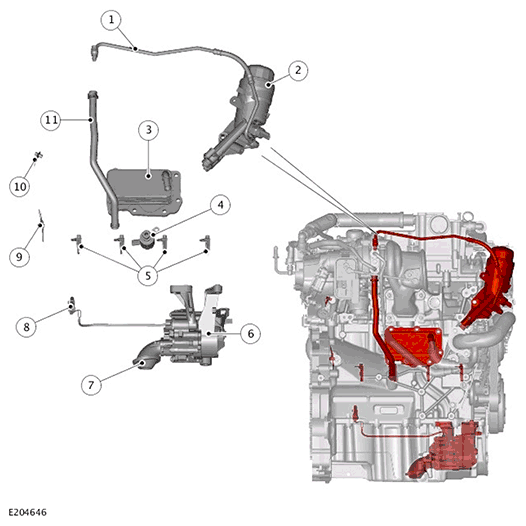

Lubrication System Components
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil supply pipe - Turbocharger |
| 2 | Oil filter and housing |
| 3 | Oil cooler |
| 4 | Piston cooling oil jets solenoid |
| 5 | Piston cooling oil jet (4 off) |
| 6 | Variable flow oil pump with integral vacuum pump |
| 7 | Variable flow oil pump inlet pipe |
| 8 | Variable flow oil pump solenoid electrical connector |
| 9 | Primary timing chain oil jet |
| 10 | Secondary timing chain oil jet |
| 11 | Oil return pipe - Turbocharger |
