Cylinder Block

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

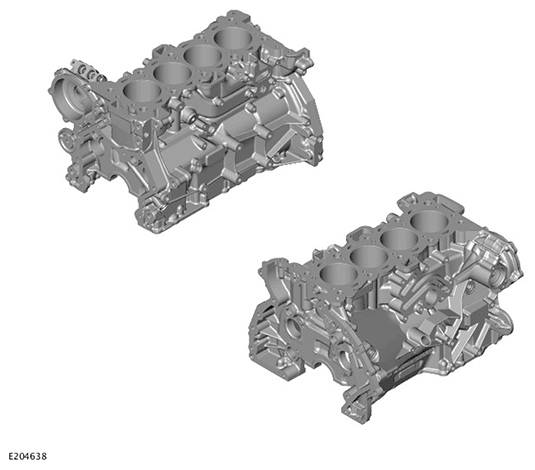

The deep skirt cast aluminum cylinder block is an inline configuration. Thin wall, interference fit cast iron liners provide optimum weight, cylinder bore roundness and robustness. The low volume coolant jacket gives good warm up times.

The cylinder block is a cross flow design with

The coolant inlet to the cylinder head on the exhaust side
And the coolant outlet from the cylinder head on the air inlet side.

Oil from the cylinder head drains back to the oil pan through open apertures. One located at the front of the cylinder block and one at the rear of the cylinder block between the timing chain and the lower timing chain cover.

A cast aluminum alloy, structural windage tray is bolted to the bottom of the cylinder block

To improve the cylinder block stiffness
To minimize Noise, Vibration and Harshness (NVH)
To help reduce oil foaming.

Various machining ports in the cylinder block are sealed with cup plugs and threaded plugs. Removal of these is not necessary for service procedures.

There are a front cover and a rear cover on the engine. Both cover is fixed to the engine block by bolts and sealed to the cylinder block with RTV sealant. Both cover contains a machined place for the oil seal. The front cover has a removable element that allows the front oil seal to be replaced without removal of the front cover.
