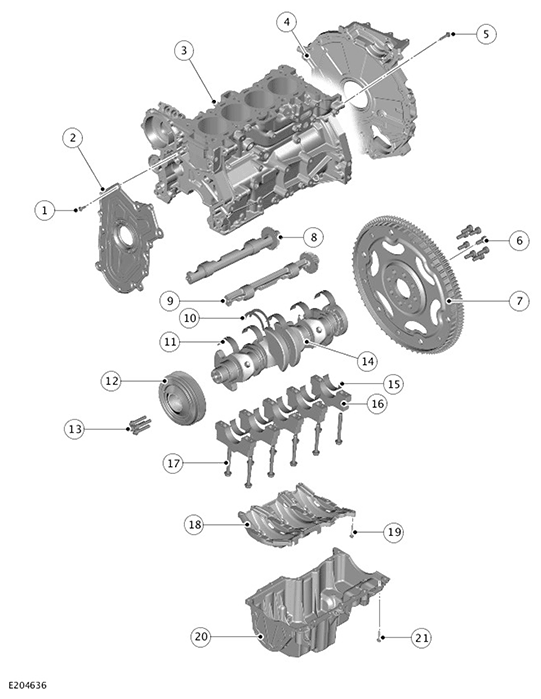

Cylinder Block Components
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt - Engine front cover (14 off) |
| 2 | Engine front cover |
| 3 | Cylinder block |
| 4 | Lower timing chain cover |
| 5 | Bolt - Lower timing chain cover (16 off) |
| 6 | Bolt - Drive plate (8 off) |
| 7 | Drive plate |
| 8 | Right dynamic balancer |
| 9 | Left dynamic balancer |
| 10 | Thrust washer (2 off) |
| 11 | Upper main bearing (5 off) |
| 12 | Mass damper |
| 13 | Bolt - Mass damper (4 off) |
| 14 | Crankshaft |
| 15 | Lower main bearing (5 off) |
| 16 | Main bearing cap (5 off) |
| 17 | Bolts - Main bearing cap (10 off) |
| 18 | Windage tray |
| 19 | Bolt - Windage tray (12 off) |
| 20 | Oil pan |
| 21 | Bolt - Oil pan (16 off) |
