Installing A-Pillar Trim (Coupe)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always use a new clip following removal.

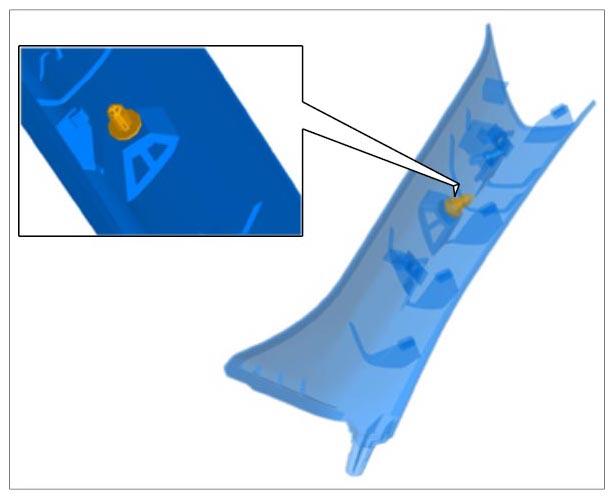

Fig 1: Identifying A-Pillar Trim (Coupe) Clip
G09997924Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Swivel in trim panel and position the guide lugs.
  2. Clip trim panel into the windscreen frame.
