Removing Seal For Convertible-Top Compartment Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

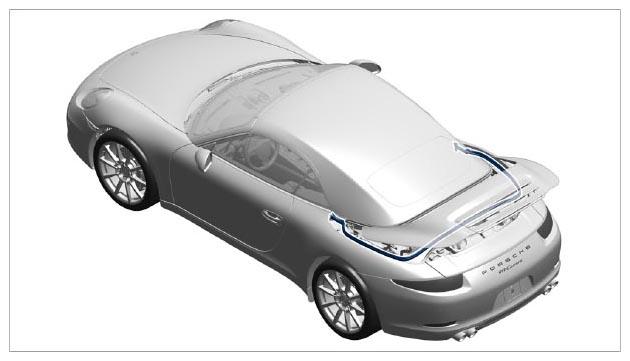

Fig 1: Identifying Seal For Convertible-Top Compartment Lid
G09994669Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull out the seal at the corner pieces close to the side wall -arrow A-  and pull it off all the way around -arrow B-  .

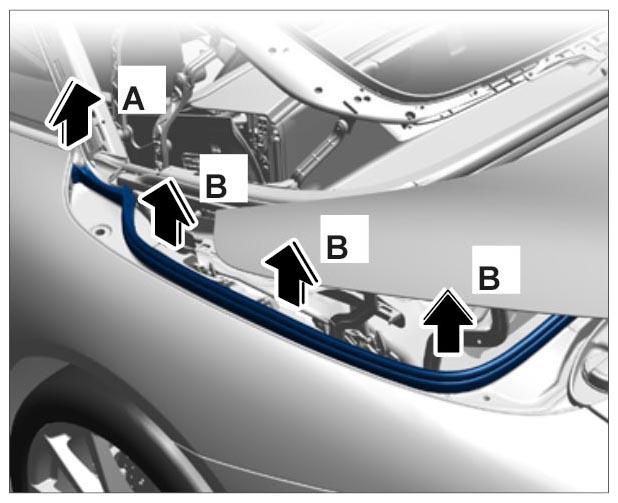

    Fig 2: Removing Seal For Convertible-Top Compartment Lid
    G09994670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
