Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws securing additional flaps to roll-over protection system frame, top | Tightening torque | 9.7 Nm (7.5 ftlb.) | |||
|

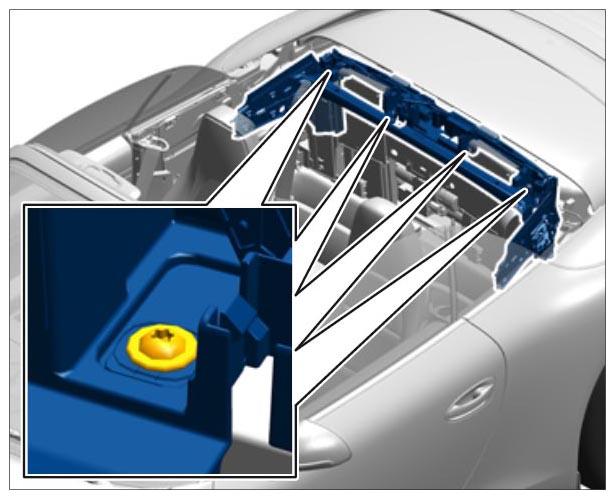

Fastening screws at the top |
|||||
| Fastening screws securing additional flaps to roll-over protection system frame, rear | Tightening torque | 9.7 Nm (7.5 ftlb.) | |||
|

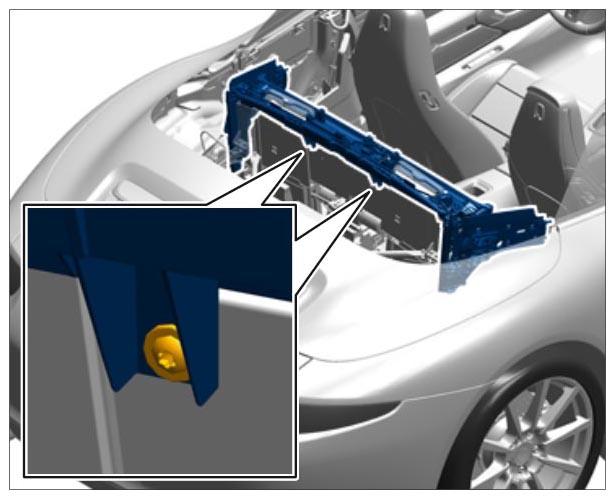

Rear fastening screws |
|||||
| Fastening screws securing additional flaps to roll-over protection system frame, side | Tightening torque | 9.7 Nm (7.5 ftlb.) | |||
|

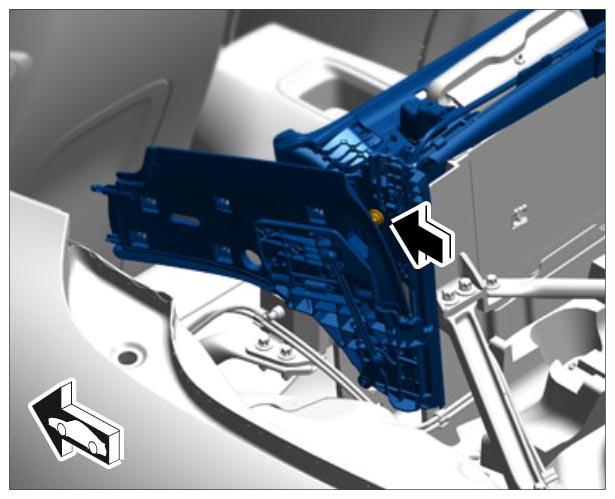

Side fastening screws |
|||||
