Removing Rear Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Actuate rear lid release.
  2. Position convertible-top compartment lid -1-  so that the rear seal -2-  can be reached all the way around.
  3. Pull off seal -2-  all around -arrows A-  the sheet metal flange -3-  .
  4. Pull off seal -2-  to the rear -arrow B-  and guide it off the Targa bar.

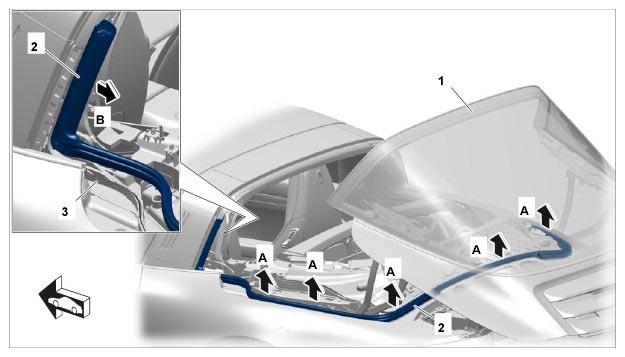

    Fig 1: Removing Rear Seal
    G09994470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
