Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

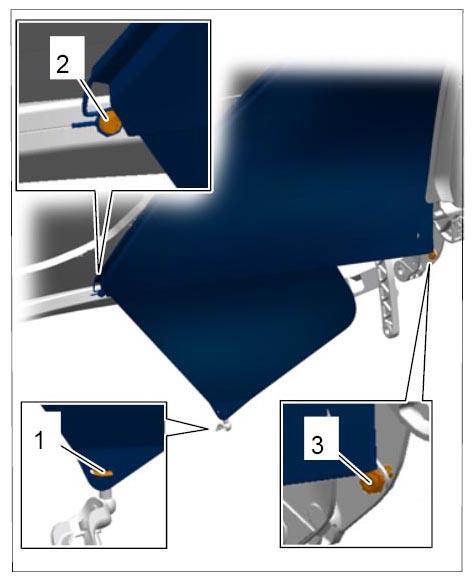

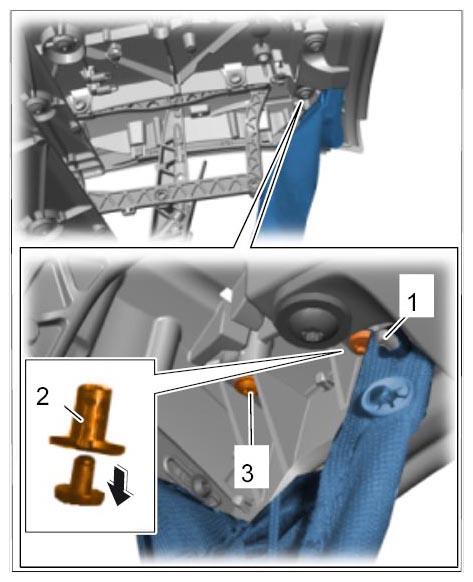

| Fastening screw on molded part | Item 3 | Tightening torque | 3.0 Nm (2 ftlb.) | ||
|
Front convertible top rooflining |
|||||

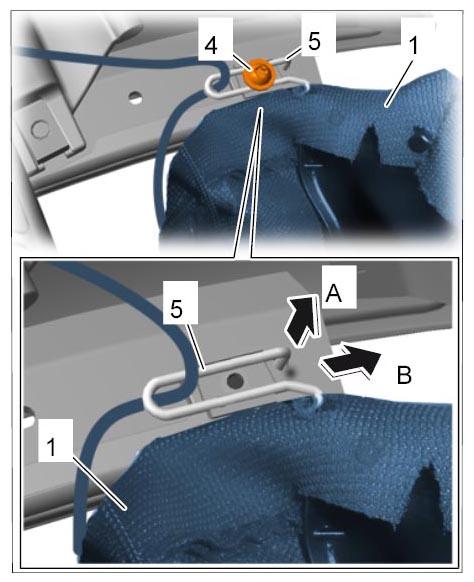

| Fastening screw on clamp | Item 4 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Front convertible top rooflining |
|||||
| Fastening screw on guide cable | Item 2 | Tightening torque | 9.7 Nm (7.5 ftlb.) | ||
|
Rear convertible top rooflining connection |
|||||
