Installing Convertible Top Rooflining (Rear Window Frame)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

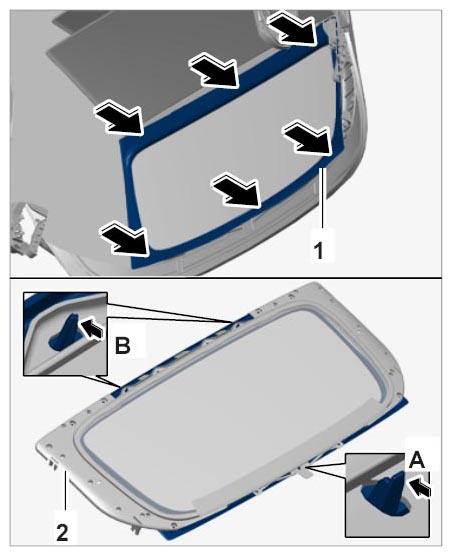

  1. Position convertible top rooflining (rear window frame) -1-  using the centring journals -arrows A  and B-  on the retaining frame for the rear window -2-  .
    Fig 1: Installing Convertible Top Rooflining (Rear Window Frame)
    G09994417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip convertible top rooflining (rear window frame) in fully.
