Moving Convertible Top To Service Position

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

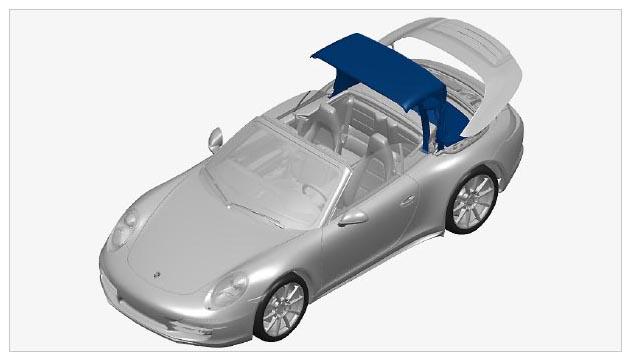

Fig 1: Convertible Top In Service Position
G09994400Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch on ignition.
  2. Open the convertible top -1-  electrically until the convertible top is at a center position.
  3. Cancel the opening process.

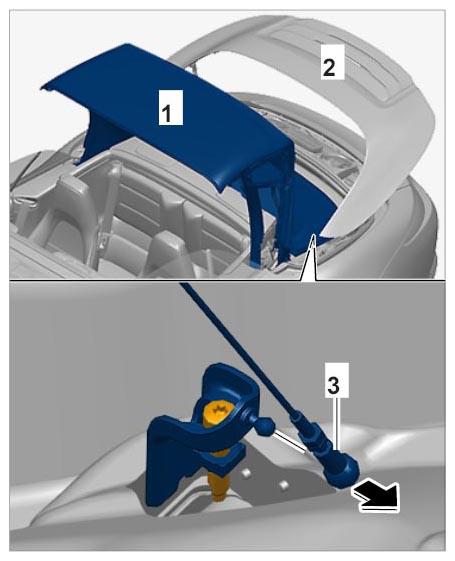

    Fig 2: Moving Convertible Top To Center Position And Disengage Tension Ropes
    G09994401Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Switch off ignition.
  5. Disengage tension ropes -3-  at the left and right.
