Removing Convertible Top

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

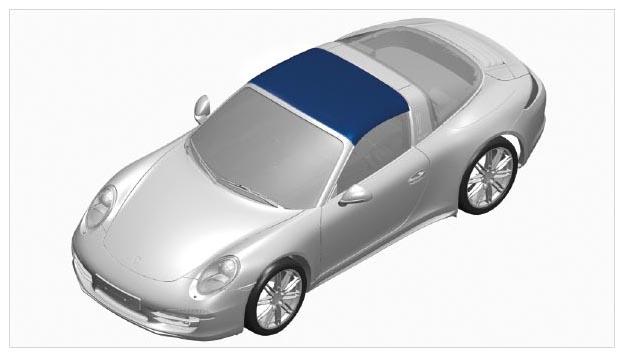

Fig 1: Identifying Convertible Top

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

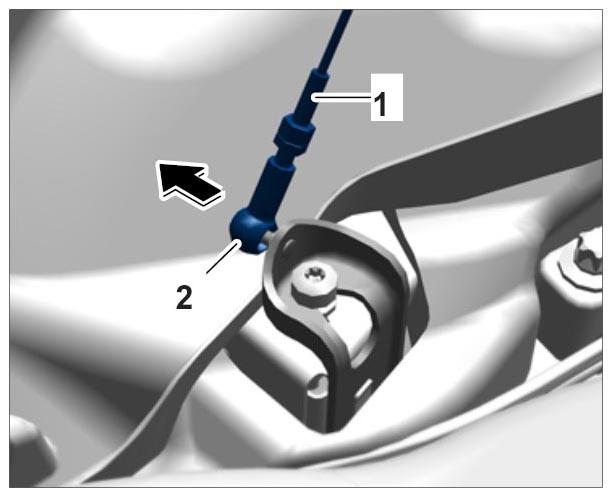

Unclip tension rope -1- from rear ball socket -2- .

Fig 2: Removing Tension Rope
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

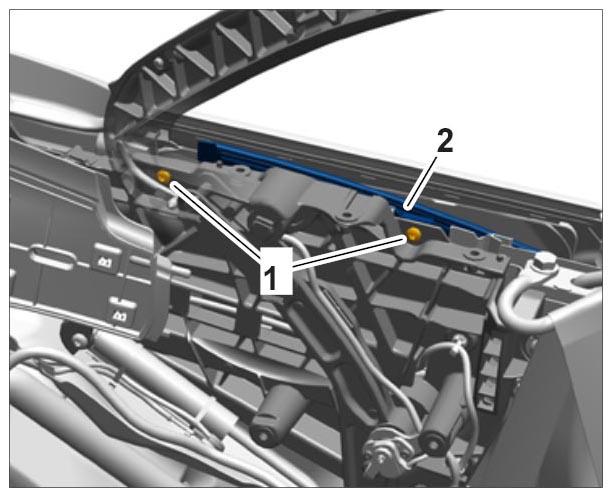

Unscrew fastening screw for -1- rear side window -2- .

Fig 3: Locating Rear Side Window Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Remove spacers.
Remove hydraulic cylinder.

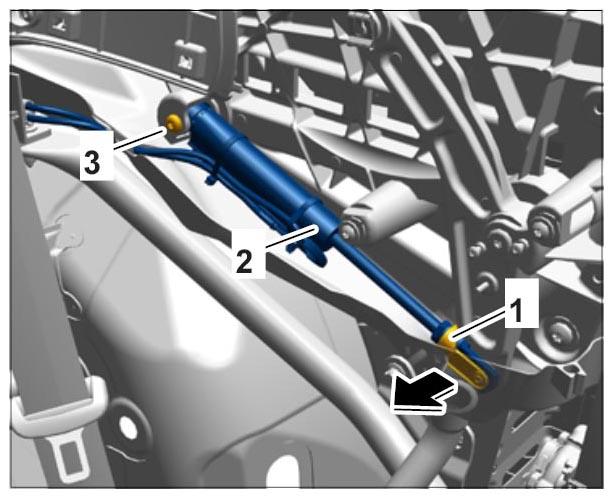

1. 3.1. Unscrew fastening screw -3- from the hydraulic cylinder -2- .
2. 3.2. Pull off safety clip -1- .

  Fig 4: Pulling Off Safety Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

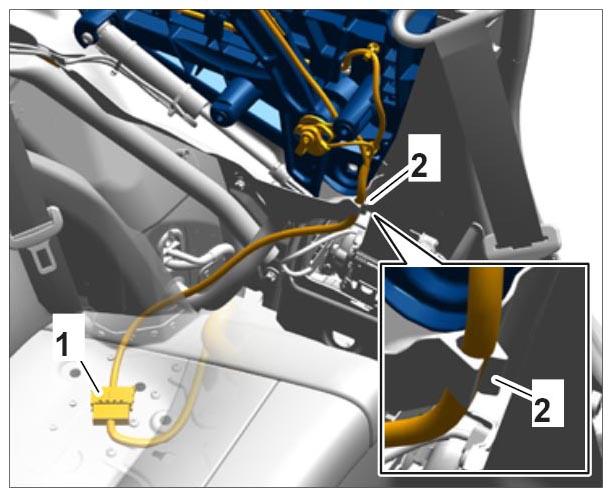

Disconnect plug connection -1- and unclip wire harness from the water drip pan bracket -2- .

Fig 5: Disconnecting Wiring Harness Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove convertible top.

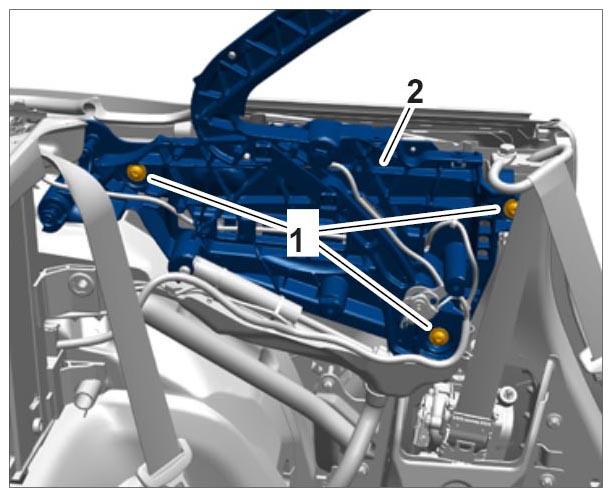

1. 5.1. Mark the position of the convertible top support -2- and fastening screws -1- in order to restore the original installation position.
2. 5.2. Unscrew fastening screws -1- from the convertible top support -2- .

  Fig 6: Identifying Convertible Top Support And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the convertible top up and off with the help of another person.
