Weight Groups And Identification Markings
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Observe the different weight groups.

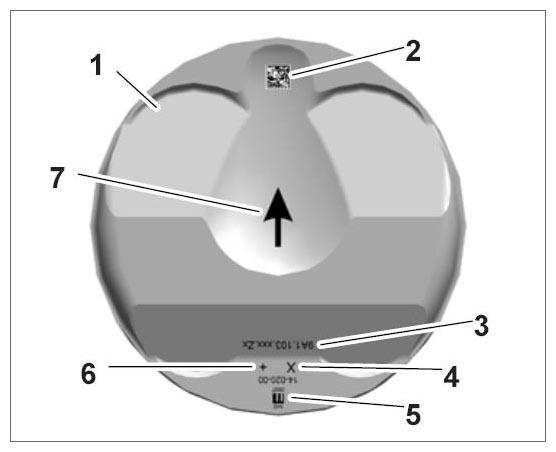

Identification markings:
- Piston
- Data matrix code on piston (intake side)
- Porsche part number
- Dimensional group (only dimensional group X available as replacement)
- Manufacturer's logo
- Weight group
- Arrow marking for intake side (visible on new pistons)
Weight groups:
| Weight group | Piston, complete, 997 3.8 l - Ø 102 mm MA1.03 |
Piston, complete, 997 3.6 l - Ø 97 mm MA1.04 |
|---|---|---|
| - | 565 - 571 g | 497 - 503 g |
| + | 571 - 577 g | 503 - 509 g |
