Replacing Rear Disc Brake Pads: Notes

Information

• Do not open the brake system.
• Do not loosen the brake line from the brake calliper when loosening the brake calliper.
• The core of the warning contact wire must not be left exposed! It does not matter if the insulation is worn.
• If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

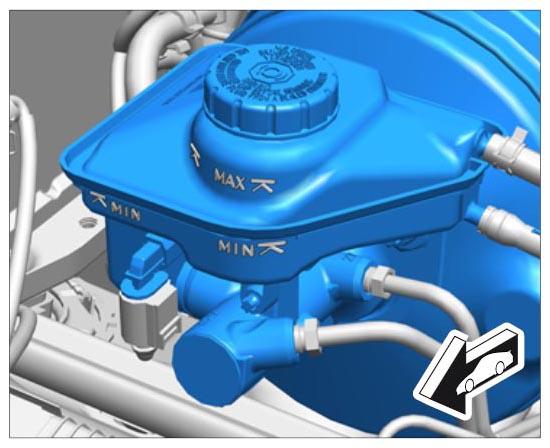

  Fig 1: Identifying Brake Fluid Reservoir

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Partially remove brake calliper.
   1. 1.1. Release and unclip the connector for the brake pad wear indicator and remove it from the holder.
   2. 1.2. Evenly set back brake pads a little using water pump pliers.

      Information

      • Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier.
   3. 1.3. Remove fastening screws on the brake calliper -arrows-  .

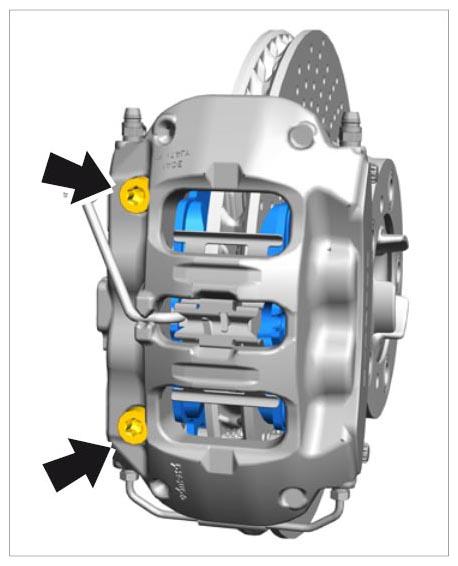

      Fig 2: Locating Brake Calliper Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 1.4. Place brake calliper onto a suitable base (e.g. universal lift). Use a suitable cloth as an intermediate layer to protect paintwork from damage.

      When positioning the brake calliper on the base, carefully guide the brake hose!

2. Position brake piston with piston resetting fixture (replaces P83) Nr.144  . Then press the brake pads back evenly → Pressing back brake pads  .

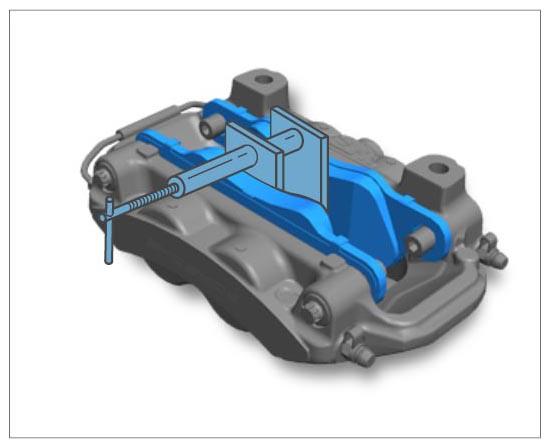

   Fig 3: Pressing Back Brake Pads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Carefully slide a commercially available screwdriver between the brake pad/brake calliper and lever the brake pad out by turning the screwdriver slightly -direction arrows-  .

   When doing this, make sure not to damage the dust boots on the brake pistons.

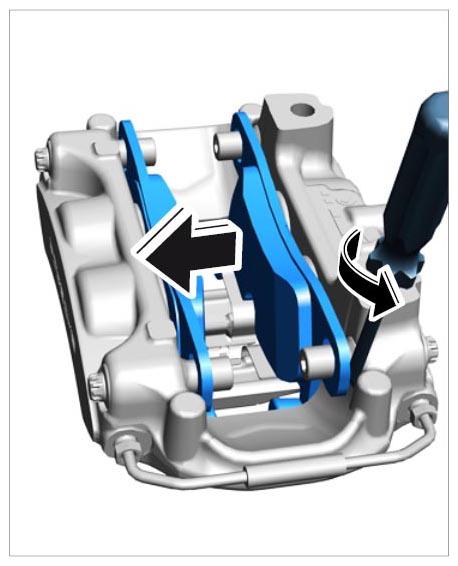

   Fig 4: Removing Brake Pads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove pad retaining springs.
