Checking Thickness Of The Disc Brake Pads
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Installation of brake pads with the wrong brake pad quality
- Longer braking distance
- More wear on brake pads
→ Only use the type-specific brake pads .
→ Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.
→ Replace the brake discs on each axle upon reaching the wear limits.
Information
- If brake pad wear is indicated by the warning light, the warning contact (sender including wire and plug connection) must also be replaced.

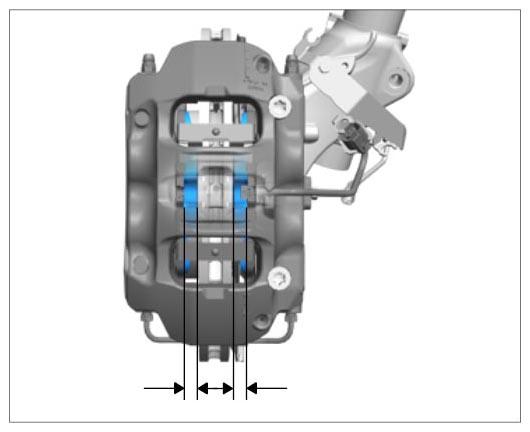

- Replacement of the warning contact can be avoided by replacing the brake pads no later than when the pad thickness is 2.5 mm -Arrow- .
- Warning contacts must be replaced if the core of the line is worn.
- However, if only the plastic part of the warning contact is worn, there is no need to replace it.
- Visually inspect the brake pads for wear.
