Installing Cover Plates For Rear Brake Discs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean wheel bearing housing -3-  in the contact area of the cover plate for rear brake disc -2-  .
  2. Position cover plate for rear brake disc -2-  on the wheel bearing housing -3-  .
  3. Tighten fastening screws -1-  securing cover plate for rear brake disc -2-  to wheel bearing housing -3-  . Tightening torque 10 Nm (7.5 ftlb.)

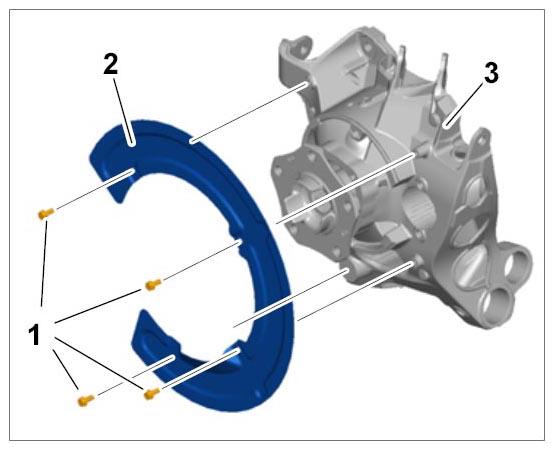

    Fig 1: Identifying Cover Plate For Rear Brake Disc
    G09991735Courtesy of PORSCHE CARS NORTH AMERICA, INC.
