Removing Engine Mounting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove air cleaner housing → 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Removing".
Support engine in installation position with a jack. To do this, attach special tool retainer plate 9592 to the engine.
Loosen and unscrew M12 collar nut on engine carrier -arrow- .

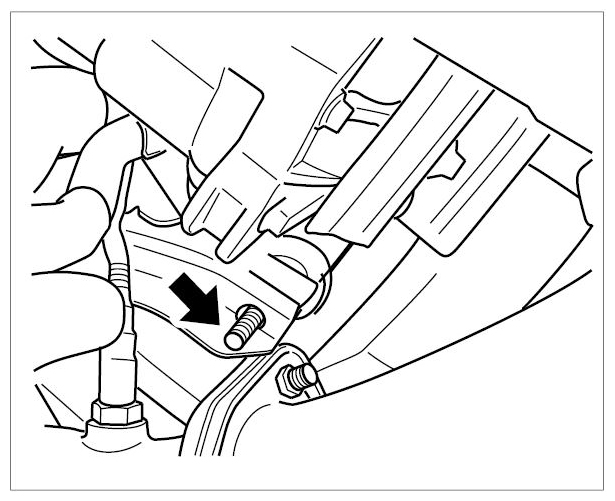

Fig 1: Locating Engine Mounting Collar Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two hexagon-head bolts (M8 x 40) on the engine mounting.

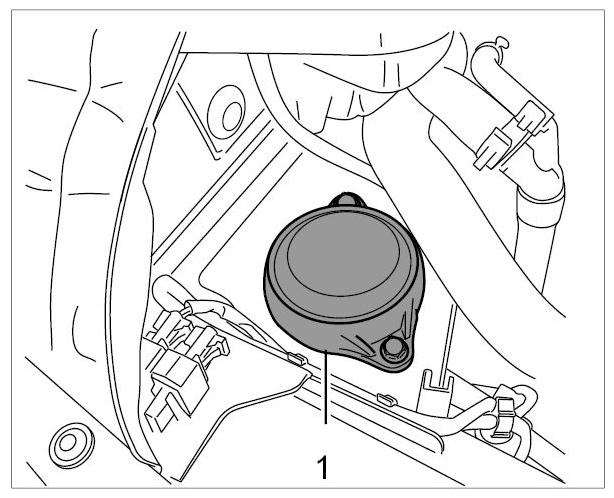

Fig 2: Identifying Left Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

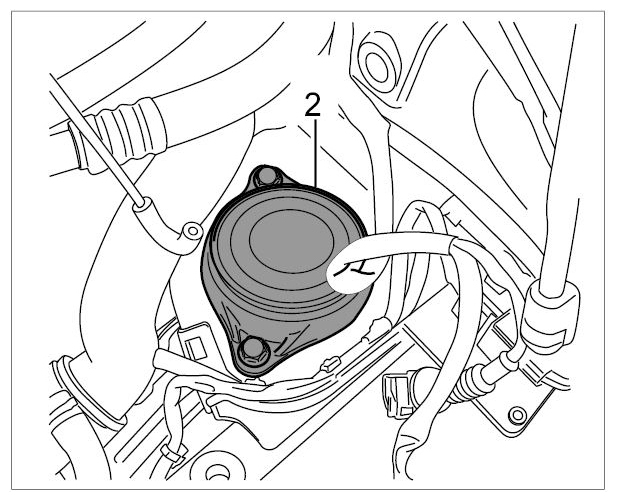

Fig 3: Identifying Right Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide engine mounting -1- upwards out of the engine carrier.

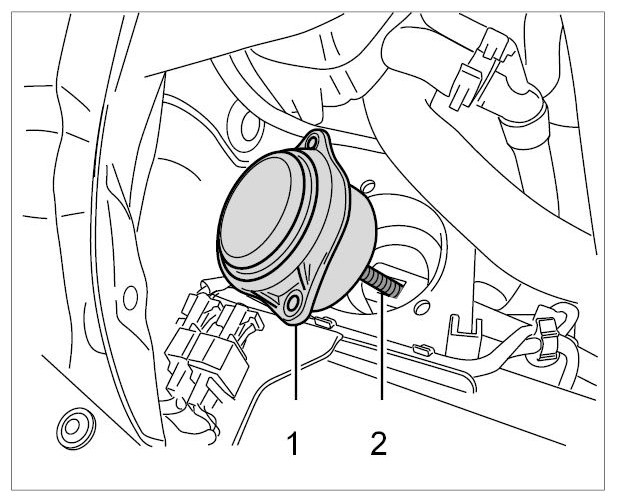

Fig 4: Identifying Vehicle Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check mounting carefully for signs of damage (dents, cracks on metal body, threaded bolts) or leaks (emerging hydraulic fluid). Replace component if in doubt.
