Installing Engine Mounting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert engine mounting -1- into body and engine carrier by guiding the threaded bolt for the engine mounting -2- into the bushing-type eyelet on the engine carrier.

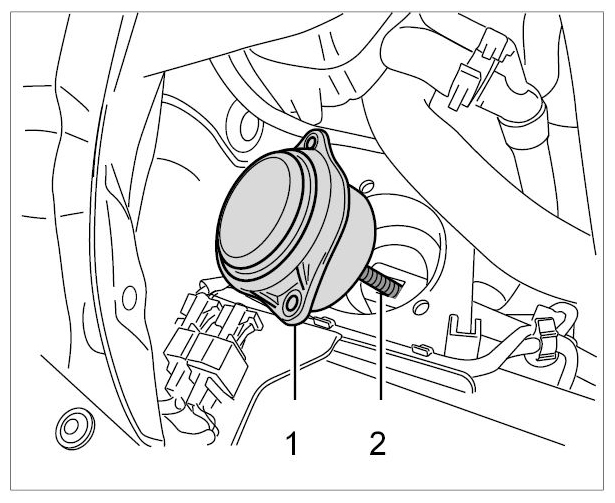

Fig 1: Identifying Vehicle Engine Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten two M8 x 40 hexagon-head bolts. → Tightening torque: 23 Nm (17 ft. lb.) .
Place collar nut on the threaded bolt for the engine mounting and tighten it -arrow- . → Tightening torque: 85 Nm (63 ft. lb.)

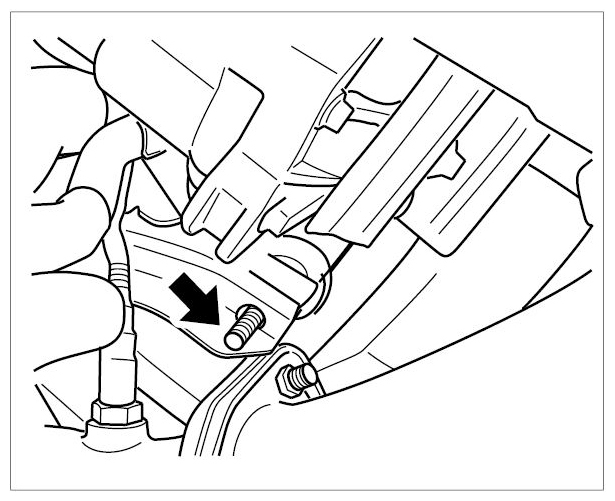

Fig 2: Locating Engine Mounting Collar Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower workshop jack and move out of work area. Remove special tool retainer plate 9592 .
Install air cleaner housing → 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Installing".
