Installing Engine Mounting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Fit the engine mounting on the engine carrier by guiding the threaded bolt through the mounting eyelet on the engine carrier.
Secure the engine mounting -1- .
1. 2.1. Fit and tighten three external Torx screws (E12, M8 x 75) -2- .
  → Tightening torque: 23 Nm (17 ft. lb.)
2. 2.2. Connect cable plug -3- .

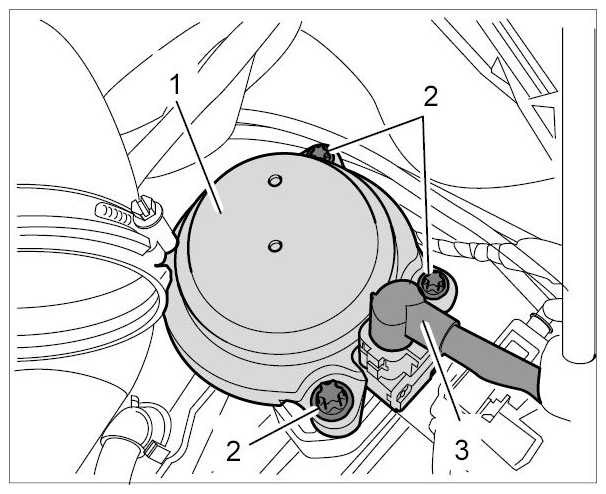

  Fig 1: Identifying Active Engine Mounting (Right Side Engine Compartment)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit M12 collar nut (internal Torx, screw insert T55) on the threaded bolt for the engine mounting and tighten it.
→ Tightening torque: 85 Nm (63 ft. lb.)
Lower jack together with transmission jack plate and push out of work area.
