Installing Engine Carrier

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert engine carrier into threaded bolt and position using two M10 collar nuts.
1. 1.1. Position M10 x 80 outer Torx screw and screw in as far as it will go.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Raise engine to its installation position using the transmission jack.
1. 2.1. Position two M12 special nuts (inner Torx, screw insert T55) -1- at the engine mounting (hydraulic mount) on the left and right.

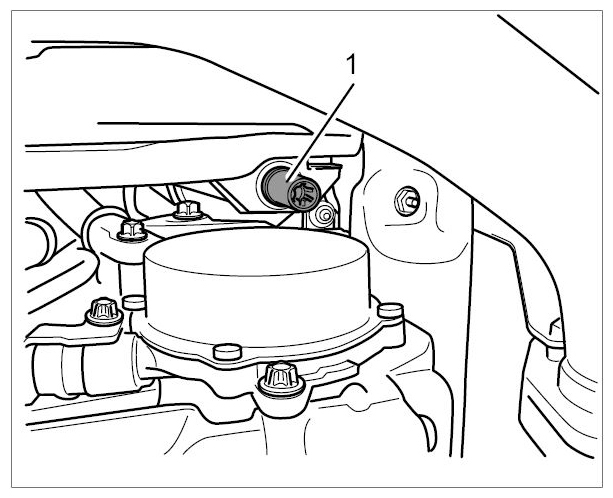

  Fig 1: Identifying Engine Carrier At Engine Mounting (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Position spacer sleeve -2- for special screw -1- in engine compartment.

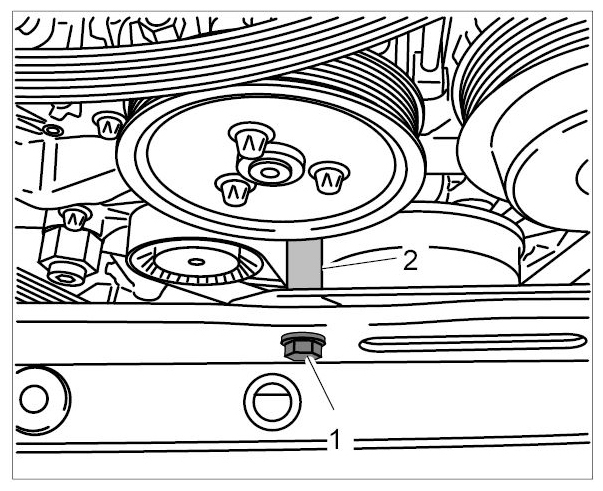

  Fig 2: Identifying Engine Carrier And Spacer Sleeve Screw (View With Engine Removed)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Insert special screw through bore in rear-lid rack and tighten it.
  → Tightening torque: 65 Nm (48 ft. lb.)

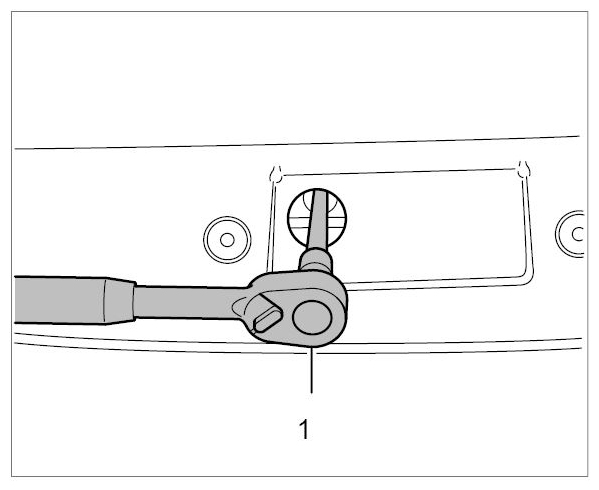

  Fig 3: Removing Engine Carrier Special Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten two M10 collar nuts and M10 x 80 outer Torx screw. → Tightening torque: 65 Nm (48 ft. lb.) ; → Tightening torque: 65 Nm (48 ft. lb.)
Tighten M12 special nuts on the left and right engine mountings. → Tightening torque: 85 Nm (63 ft. lb.)
